PZU10 - Single Zener diodes

This page provides the datasheet information for the PZU10, a member of the PZU2.4 Single Zener diodes family.

Datasheet Summary

Description

General-purpose Zener diodes in an SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.

1.2.

Features

  • Total power dissipation: ≤ 310 mW.
  • Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 %.
  • Small plastic package suitable for surface mounted design.
  • Wide working voltage range: nominal 2.4 V to 36 V 1.3.

📥 Download Datasheet

Datasheet preview – PZU10

Datasheet Details

Part number PZU10
Manufacturer nexperia
File Size 184.03 KB
Description Single Zener diodes
Datasheet download datasheet PZU10 Datasheet
Additional preview pages of the PZU10 datasheet.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

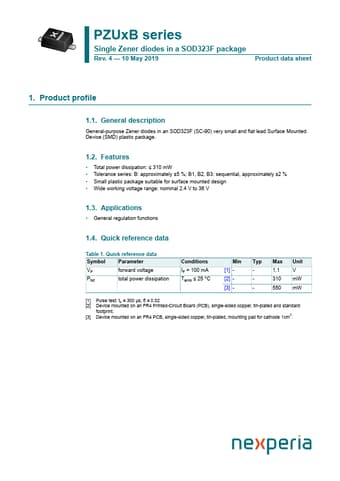

PZUxB series Single Zener diodes in a SOD323F package Rev. 4 — 10 May 2019 Product data sheet 1. Product profile 1.1. General description General-purpose Zener diodes in an SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package. 1.2. Features • Total power dissipation: ≤ 310 mW • Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 % • Small plastic package suitable for surface mounted design • Wide working voltage range: nominal 2.4 V to 36 V 1.3. Applications • General regulation functions 1.4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 100 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 1.
