SZMM3Z18VT1G Datasheet, Diodes, nexperia

SZMM3Z18VT1G Features

• Diodes

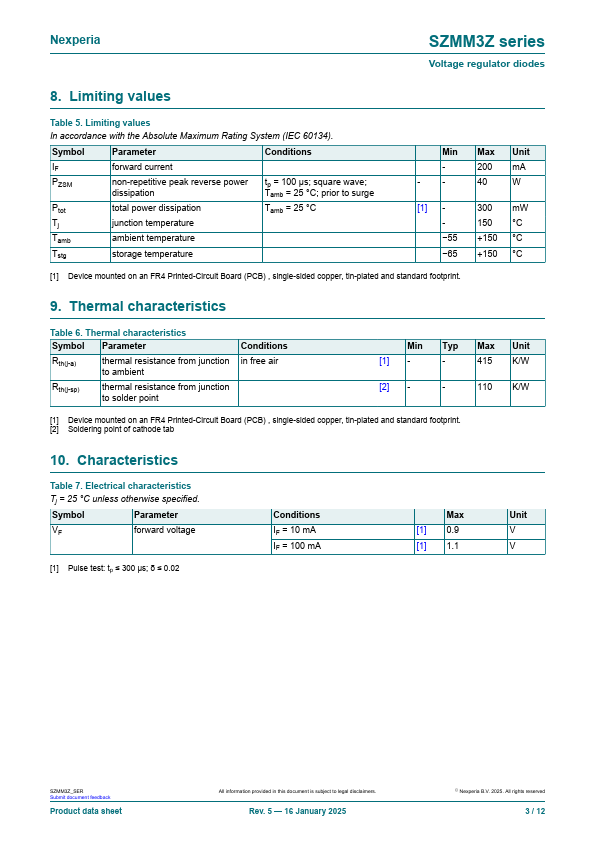

• Non-repetitive peak reverse power disspation: ≤ 40 W
• Total power dissipation: ≤ 300 mW
• Tolerance series: Approximately ± 5 %
• Wide working voltage

PDF File Details

Part number:

SZMM3Z18VT1G

Manufacturer:

nexperia ↗

File Size:

262.72kb

Download:

📄 Datasheet

Description:

Voltage regulator diodes. General-purpose Zener diodes in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits <

SZMM3Z18VT1G Application

• Applications
• General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage
