SZMM3Z30VT1G, SZMM3Z2V4T1G Voltage regulator diodes

SZMM3Z series Voltage regulator diodes Rev.5 * 16 January 2025 Product data sheet 1.General .

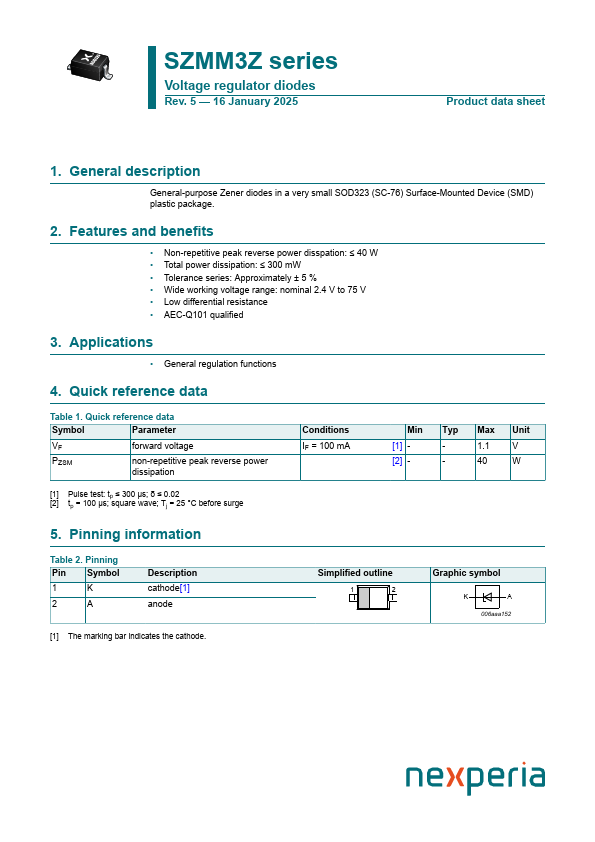

General-purpose Zener diodes in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. Non-repe.

SZMM3Z2V4T1G-nexperia.pdf

SZMM3Z30VT1G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZMM3Z30VT1G, SZMM3Z2V4T1G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SZMM3Z30VT1G, SZMM3Z2V4T1G

Manufacturer:

nexperia ↗

File Size:

263.92 KB

Description:

Voltage regulator diodes

Note:

This datasheet PDF includes multiple part numbers: SZMM3Z30VT1G, SZMM3Z2V4T1G.
Please refer to the document for exact specifications by model.

Features

* Non-repetitive peak reverse power disspation: ≤ 40 W
* Total power dissipation: ≤ 300 mW
* Tolerance series: Approximately ± 5 %
* Wide working voltage range: nominal 2.4 V to 75 V
* Low differential resistance

Applications

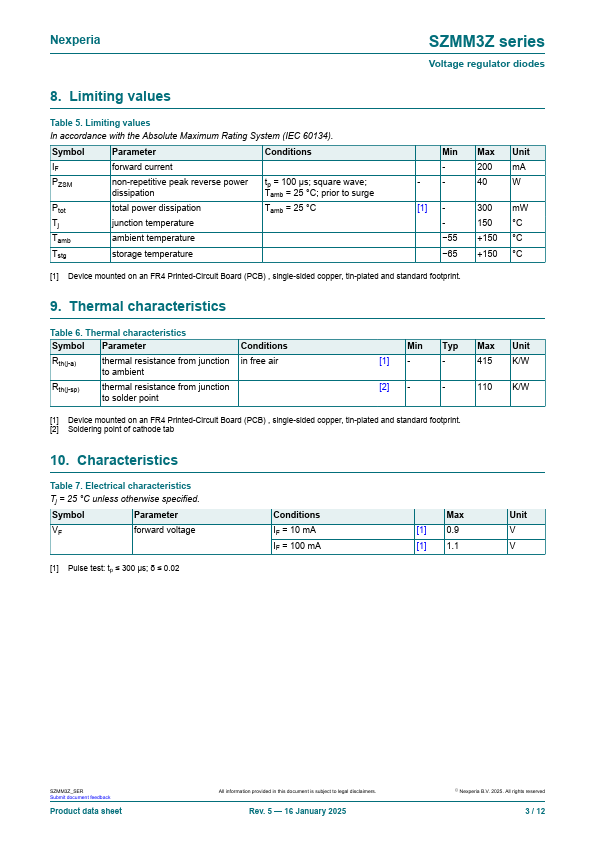

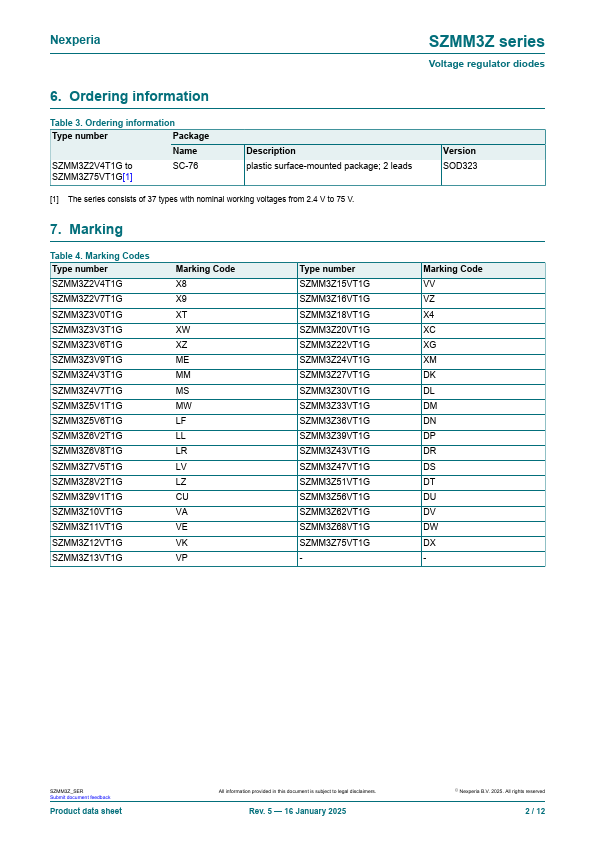

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage PZSM non-repetitive peak reverse power dissipation [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02 [2] tp = 100 µs; square wave; Tj = 25 °C before surge Conditions IF = 10
