SZMM3Z43VT1G Datasheet, Diodes, nexperia

✔ SZMM3Z43VT1G Features

Non-repetitive peak reverse power disspation: ≤ 40 W
Total power dissipation: ≤ 300 mW
Tolerance series: Approximately ± 5 %
Wide working voltage range: nominal 2

✔ SZMM3Z43VT1G Application

General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter V

PDF File Details

nexperia manufacturer logo

Part number:

SZMM3Z43VT1G

Manufacturer:

nexperia ↗

File Size:

262.72kb

Download:

📄 Datasheet

Description:

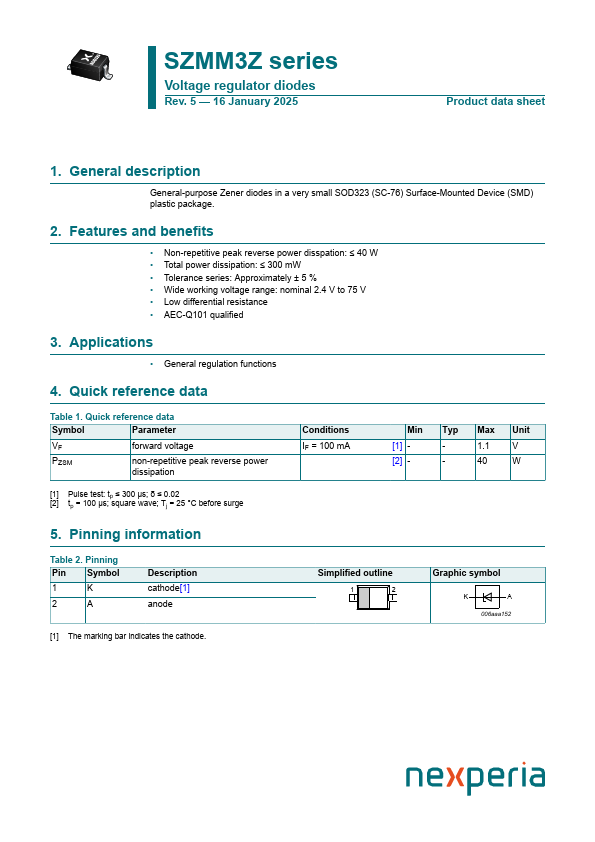

Voltage regulator diodes. General-purpose Zener diodes in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits *

📥 Download PDF (262.72kb)
