78L05AB - Positive Voltage Regulators

Product Overview

onsemi

📥 Download Datasheet

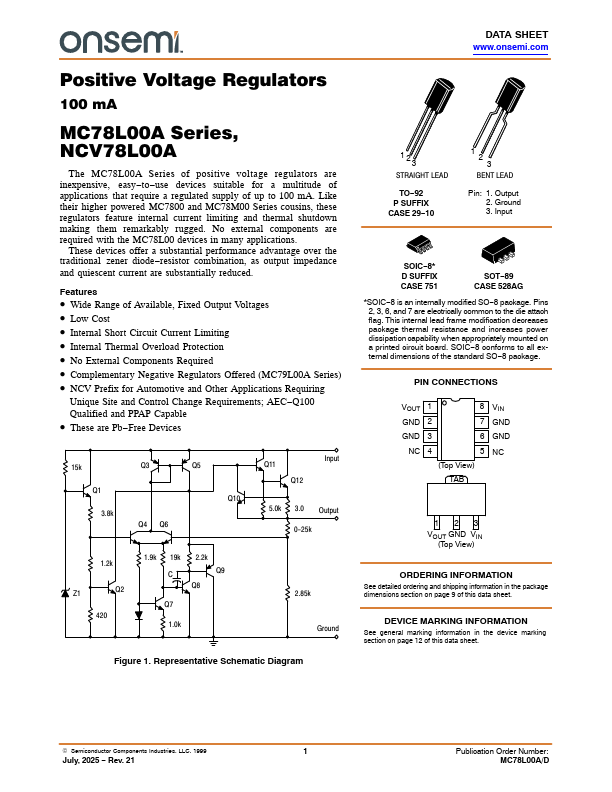

78L05AB Positive Voltage Regulators by onsemi - Datasheet Preview — Datasheet preview – 78L05AB

Datasheet Details

Part number	78L05AB
Manufacturer	onsemi
File Size	332.16 KB
Description	Positive Voltage Regulators
Datasheet	78L05AB Datasheet
Note	This datasheet PDF includes multiple part numbers: 78L05AB, 78L05AC. Please refer to the document for exact specifications by model.

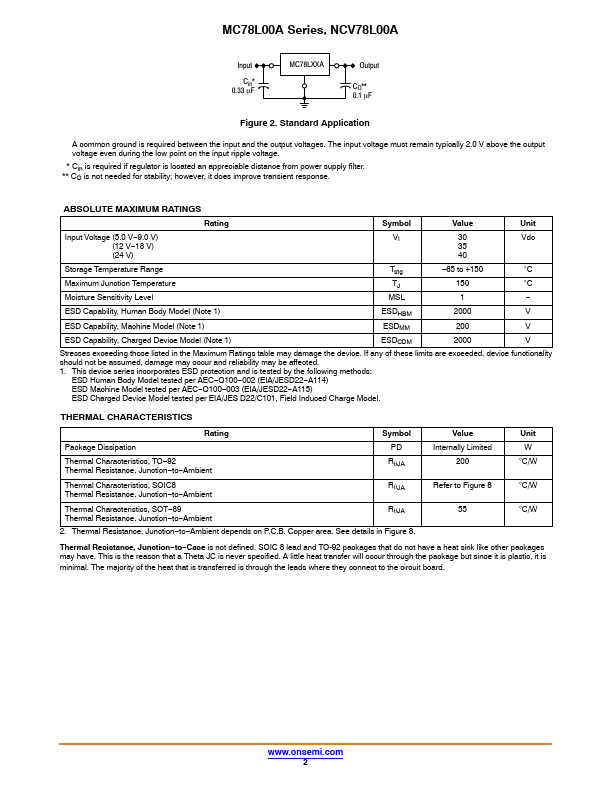

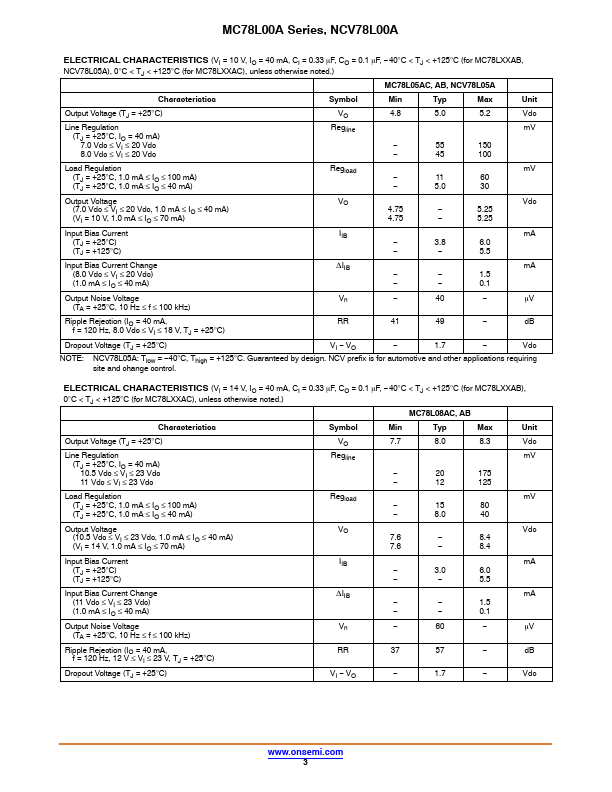

Additional preview pages of the 78L05AB datasheet.

Product details

Features

Wide Range of Available, Fixed Output Voltages.
Low Cost.
Internal Short Circuit Current Limiting.
Internal Thermal Overload Protection.
No External Components Required.
Complementary Negative Regulators Offered (MC79L00A Series).
NCV Prefix for Automotive and Other.
