78L08AB
feature internal current limiting and thermal shutdown making them remarkably rugged. No external ponents are required with the MC78L00 devices in many applications.
These devices offer a substantial performance advantage over the traditional zener diode- resistor bination, as output impedance and quiescent current are substantially reduced.
Features
- Wide Range of Available, Fixed Output Voltages
- Low Cost
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- No External ponents Required
- plementary Negative Regulators Offered (MC79L00A Series)
- NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q100 Qualified and PPAP Capable
- These are Pb- Free Devices
15k
Q3
Q5
Q1
3.8k Q4 Q6
Input Q11
Q12
Q10 5.0k 3.0 Output
0-25k
1.2k
Z1
Q2
1.9k 19k 2.2k
Q9
Q8
Q7
1.0k
2.85k Ground

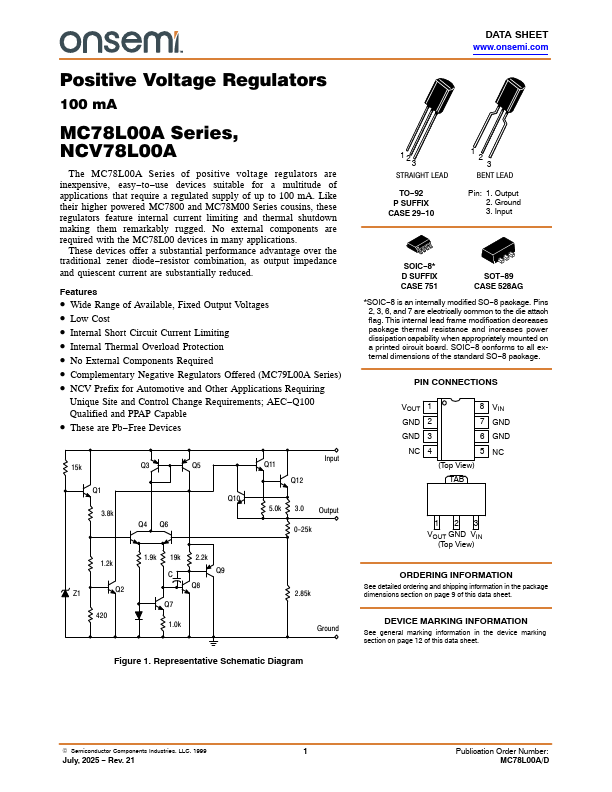

Figure 1. Representative Schematic Diagram
123 STRAIGHT LEAD
TO- 92 P SUFFIX CASE 29- 10
1 2 3 BENT...
