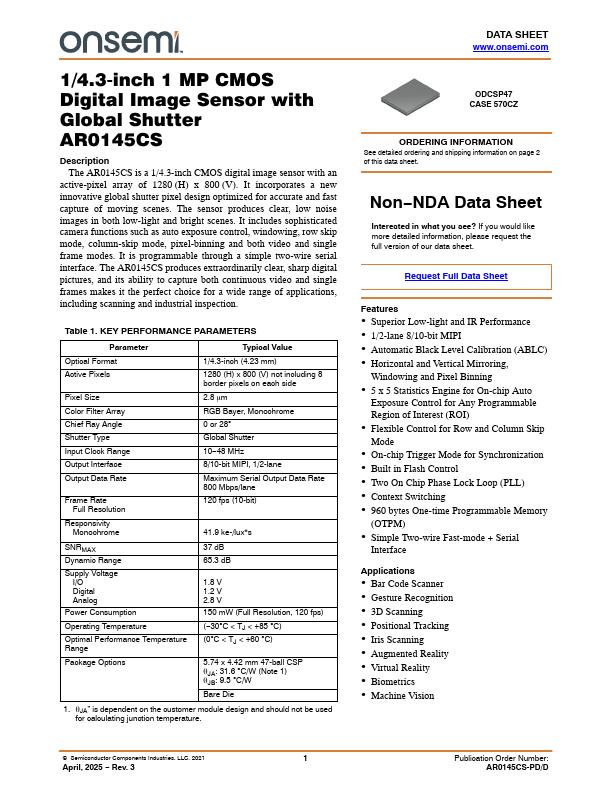

AR0145CS - 1/4.3-inch 1-MP CMOS Digital Image Sensor

onsemi

AR0145CS Datasheet Preview — Preview of AR0145CS PDF

Datasheet Details

Part number	AR0145CS
Manufacturer	onsemi
File Size	294.04 KB
Description	1/4.3-inch 1-MP CMOS Digital Image Sensor
Datasheet	AR0145CS-onsemi.pdf

AR0145CS Product details

Description

The AR0145CS is a 1/4.3-inch CMOS digital image sensor with an active-pixel array of 1280 (H) x 800 (V).It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes.The sensor produces clear, low noise images in both low-light and bright scenes.It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes.It is programmable throu

Features

Superior Low-light and IR Performance.
1/2-lane 8/10-bit MIPI.
Automatic Black Level Calibration (ABLC).
Horizontal and Vertical Mirroring, Windowing and Pixel Binning.
5 x 5 Statistics Engine for On-chip Auto Exposure Control for Any Programmable Region of Interest (ROI).
Flexible Control for Row and Column Skip Mode.
On-chip Trigger Mode for Synchronization.
Built in Flash Control.
Two On Chip Phase Lock Loop (PLL).
Context Switching.
960.
