FLS1800XS, FLS2100XS Datasheet - onsemi

FLS1800XS Half-Bridge LLC Resonant Controller

The FLS *XS series of general lighting power controllers includes highly integrated power switches for medium * to high *power lumens applications. Offering everything necessary to build a reliable and robust half *bridge resonant converter, the FLS *XS series simp.

FLS1800XS Features

* Variable Frequency Control with 50% Duty Cycle for Half

* Bridge Resonant Converter Topology

* High Efficiency through Zero Voltage Switching (ZVS)

* Internal UniFETt with Fast

* Recovery Body Diode

* Fixed Dead Time (350 ns) Optimized for MOSFETs

FLS2100XS-onsemi.pdf

This datasheet PDF includes multiple part numbers: FLS1800XS, FLS2100XS. Please refer to the document for exact specifications by model.

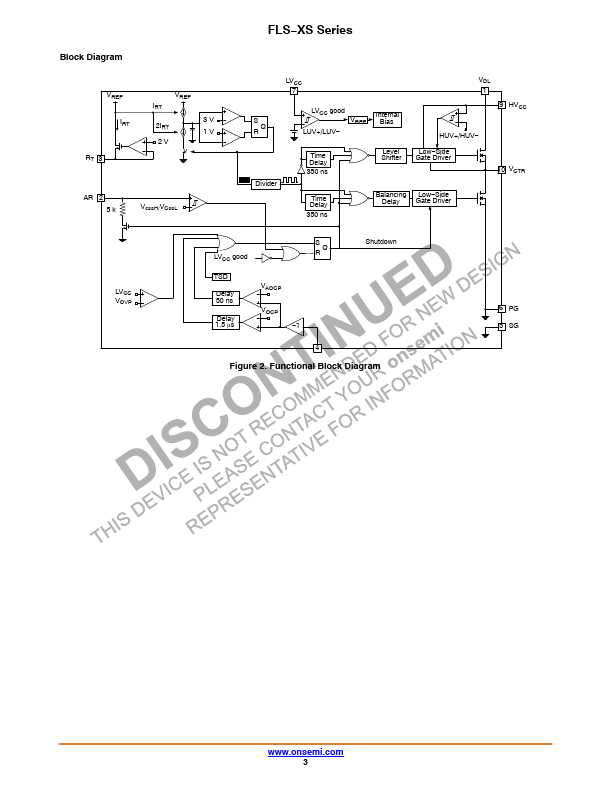

FLS1800XS Datasheet Preview Page 2 FLS1800XS Datasheet Preview Page 3

Datasheet Details

Part number:

FLS1800XS, FLS2100XS

Manufacturer:

onsemi

File Size:

496.31 KB

Description:

Half-bridge llc resonant controller.

Note:

This datasheet PDF includes multiple part numbers: FLS1800XS, FLS2100XS.
Please refer to the document for exact specifications by model.
