FMB2222A - NPN Multi-Chip General-Purpose Amplifier

📥 Download Datasheet

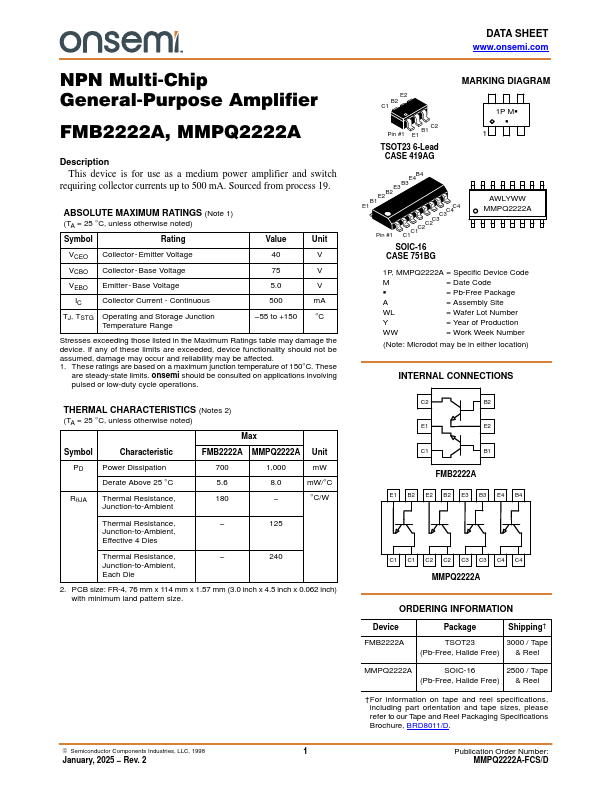

Preview of FMB2222A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number FMB2222A
Manufacturer onsemi
File Size 158.99 KB
Description NPN Multi-Chip General-Purpose Amplifier
Datasheet download datasheet FMB2222A-onsemi.pdf

FMB2222A Product details

Description

This device is for use as a medium power amplifier and switch requiring collector currents up to 500 mA.Sourced from process 19. ABSOLUTE MAXIMUM RATINGS (Note 1) (TA = 25 °C, unless otherwise noted) Symbol Rating Value Unit VCEO Collector - Emitter Voltage VCBO Collector - Base Voltage VEBO Emitter - Base Voltage IC Collector Current - Continuous TJ, TSTG Operating and Storage Junction Temperature Range 40 V 75 V 5.0 V 500 mA 55 to +150 °C Stresses exceeding those
