FSV1045V - 10A 45V Schottky Rectifier

onsemi

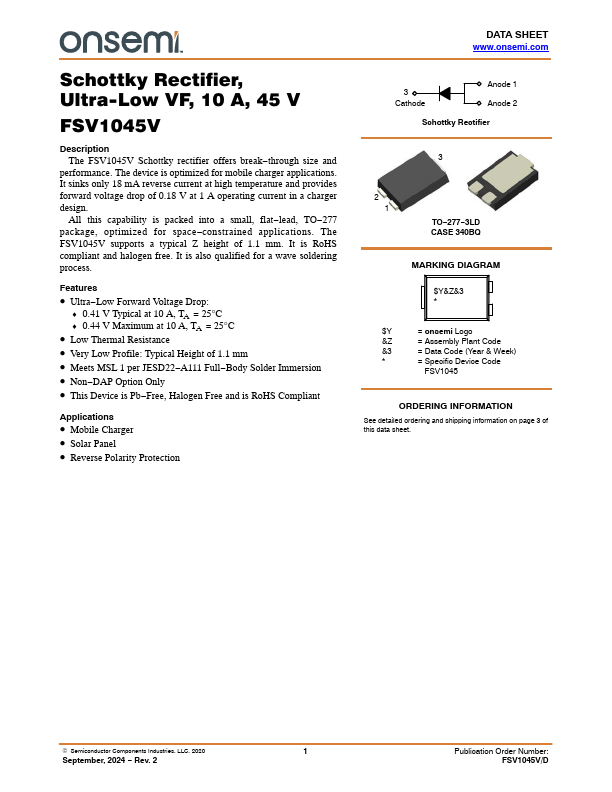

FSV1045V Datasheet Preview — Preview of FSV1045V PDF

Datasheet Details

Part number	FSV1045V
Manufacturer	onsemi
File Size	205.60 KB
Description	10A 45V Schottky Rectifier
Datasheet	FSV1045V-onsemi.pdf

FSV1045V Product details

Description

The FSV1045V Schottky rectifier offers break through size and performance.The device is optimized for mobile charger applications.It sinks only 18 mA reverse current at high temperature and provides forward voltage drop of 0.18 V at 1 A operating current in a charger design.All this capability is packed into a small, flat lead, TO 277 package, optimized for space constrained applications.

Features

Ultra.
Low Forward Voltage Drop:.
0.41 V Typical at 10 A, TA = 25°C.
0.44 V Maximum at 10 A, TA = 25°C.
Low Thermal Resistance.
Very Low Profile: Typical Height of 1.1 mm.
Meets MSL 1 per JESD22.
A111 Full.
Body Solder Immersion.
Non.
DAP Option Only.
This Device is Pb.
Free, Halogen Free and is RoHS Compliant.
