LC898128DP - OIS & Open-AF Control LSI

onsemi

LC898128DP Datasheet Preview — Preview of LC898128DP PDF

Datasheet Details

Part number	LC898128DP
Manufacturer	onsemi
File Size	235.88 KB
Description	OIS & Open-AF Control LSI
Datasheet	LC898128DP-onsemi.pdf

LC898128DP Product details

Description

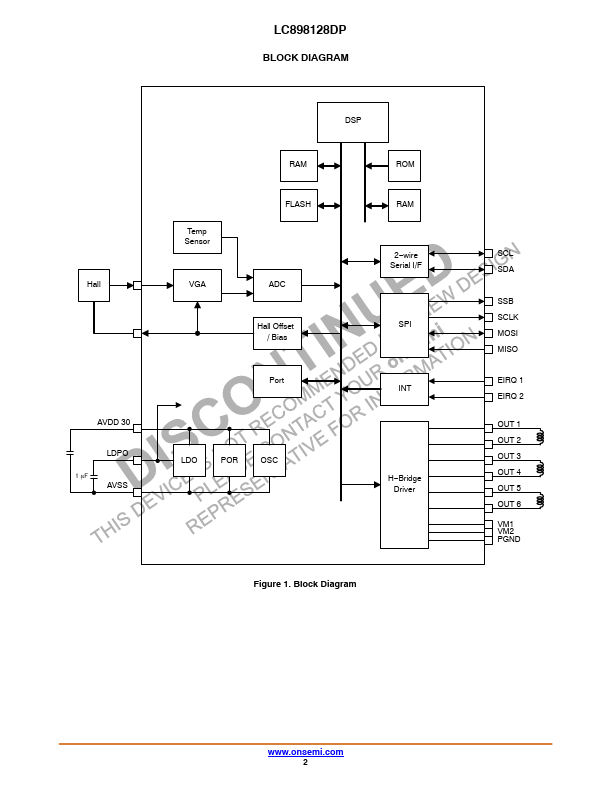

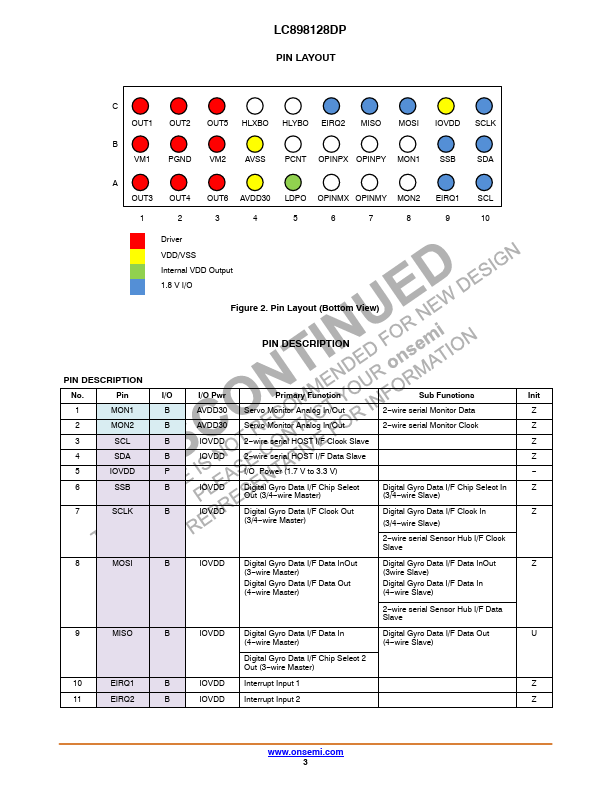

PIN DESCRIPTION No.Pin I/O 1 MON1 B 2 MON2 B 3 SCL B 4 SDA B 5 IOVDD P 6 SSB B 7 SCLK B 8 MOSI B 9 MISO B 10 EIRQ1 B 11 EIRQ2 B I/O Pwr Primary Function Sub Functions Init AVDD30 Servo Monitor Analog In/Out 2 wire serial Monitor Data Z AVDD30 Servo Monitor Analog In/Out 2 wire serial Monitor Clock Z IOVDD 2 wire serial HOST I/F Clock Slave Z IOVDD 2 wire serial HOST I/F Data Slave Z I/O Power (1.7 V to 3.3 V)

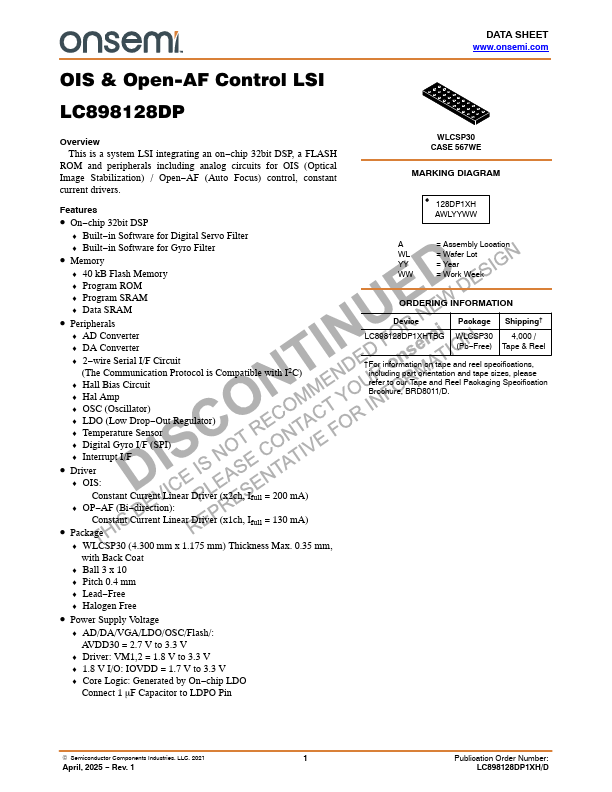

Features

On.
chip 32bit DSP.
Built.
in Software for Digital Servo Filter.
Built.
in Software for Gyro Filter.
Memory.
40 kB Flash Memory.
Program ROM.
Program SRAM.
Data SRAM.
Peripherals.
AD Converter.
DA Converter.
2.
wire Serial I/F Circuit (The Communication Protocol is Compatible with I2C).
Hall Bias Circuit.
Hal Amp.
OSC (Oscillator).
