MC78L08AC, MC78L05AC - Positive Voltage Regulators

MC78L08AC Description

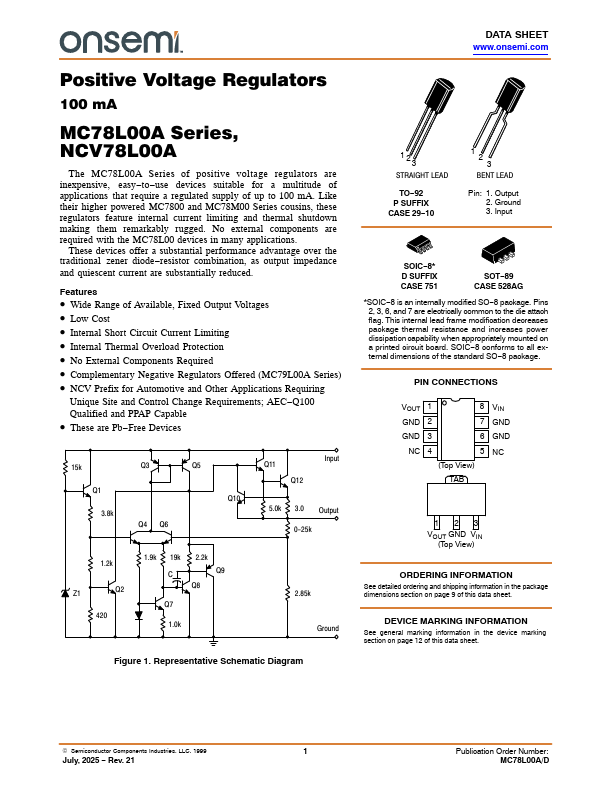

DATA SHEET www.onsemi.com Positive Voltage Regulators 100 mA MC78L00A Series, NCV78L00A The MC78L00A Series of positive voltage regulators are inexpe.

MC78L08AC Features

* Wide Range of Available, Fixed Output Voltages
* Low Cost
* Internal Short Circuit Current Limiting
* Internal Thermal Overload Protection
* No External Components Required
* Complementary Negative Regulators Offered (MC79L00A Series)
* NCV P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC78L08AC, MC78L05AC. Please refer to the document for exact specifications by model.

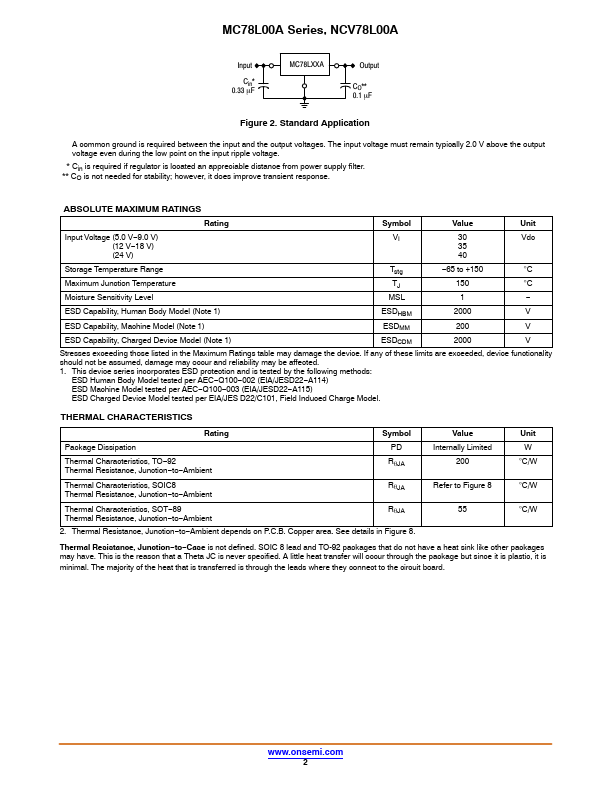

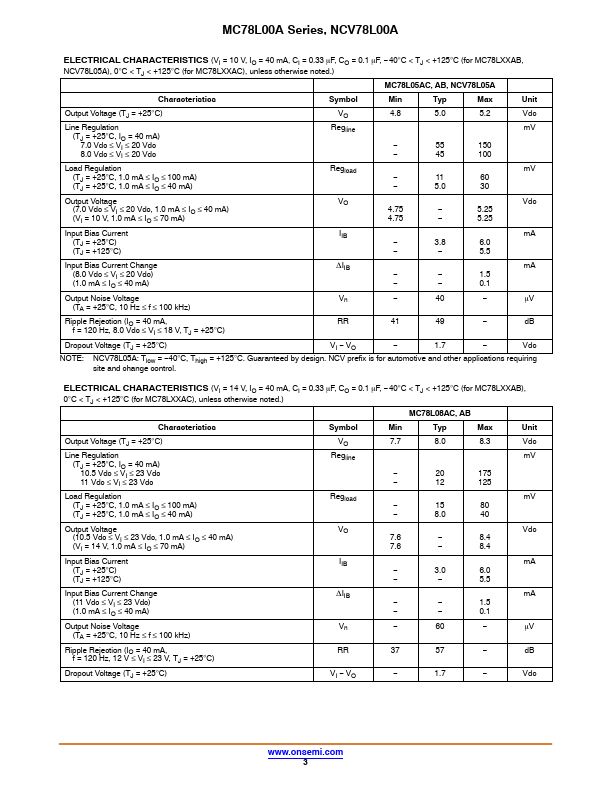

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC78L08AC, MC78L05AC
Manufacturer
onsemi
File Size
347.53 KB
Datasheet
MC78L05AC-onsemi.pdf
Description
Positive Voltage Regulators
Note
This datasheet PDF includes multiple part numbers: MC78L08AC, MC78L05AC.
Please refer to the document for exact specifications by model.
