NCID9211 - Bi-Directional Ceramic Digital Isolator

onsemi

📥 Download Datasheet

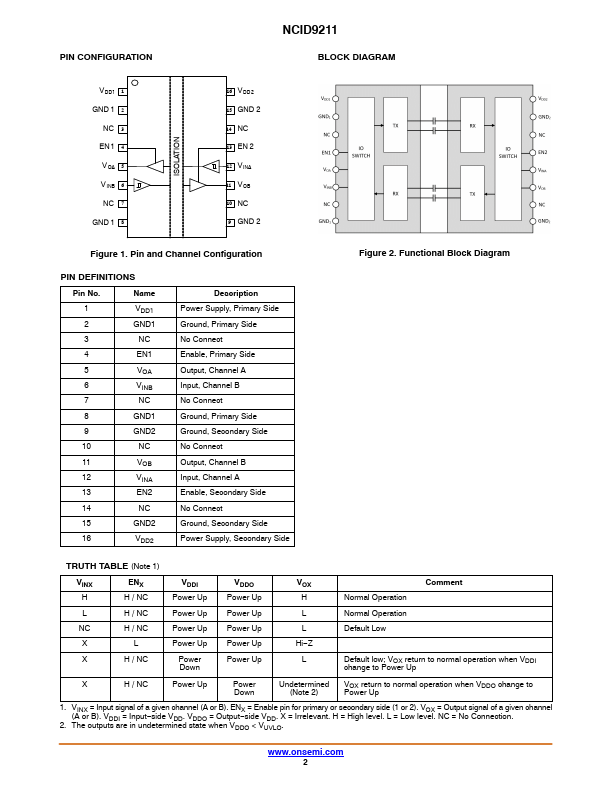

NCID9211 Datasheet Preview — Preview of NCID9211 PDF

Datasheet Details

Part number	NCID9211
Manufacturer	onsemi
File Size	469.15 KB
Description	Bi-Directional Ceramic Digital Isolator
Datasheet	NCID9211-onsemi.pdf

NCID9211 Product details

Description

The NCID9211 is a galvanically isolated full duplex, bi directional, high speed dual channel digital isolator with output enable. chip capacitor isolation technology and optimized IC design to achieve high insulation and high noise immunity, characterized by hi

Features

Off.
Chip Capacitive Isolation to Achieve Reliable High Voltage Insulation  DTI (Distance Through Insulation):  0.5 mm  Maximum Working Insulation Voltage: 2000 Vpeak.
Full Duplex, Bi.
directional Communication.
100 KV/ms Minimum Common Mode Rejection.
High Speed:  50 Mbit/s Data Rate (NRZ)  25 ns Maximum Propagation Delay  10 ns Maximum Pulse Width Distortion.
8 mm Creepage and Clearance Distance to Achieve Reliable High Voltage Insulation.
Sp.
