NCV51563 - 4.5-A/9-A Isolated Dual Channel Gate Driver

Product Overview

onsemi

📥 Download Datasheet

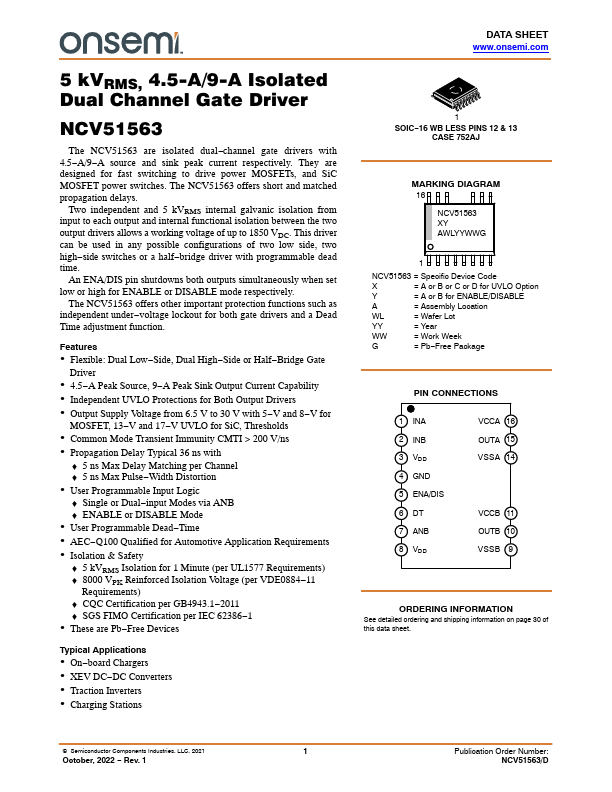

NCV51563 4.5-A/9-A Isolated Dual Channel Gate Driver by onsemi - Datasheet Preview — Datasheet preview – NCV51563

Datasheet Details

Part number	NCV51563
Manufacturer	onsemi
File Size	3.62 MB
Description	4.5-A/9-A Isolated Dual Channel Gate Driver
Datasheet	NCV51563 Datasheet

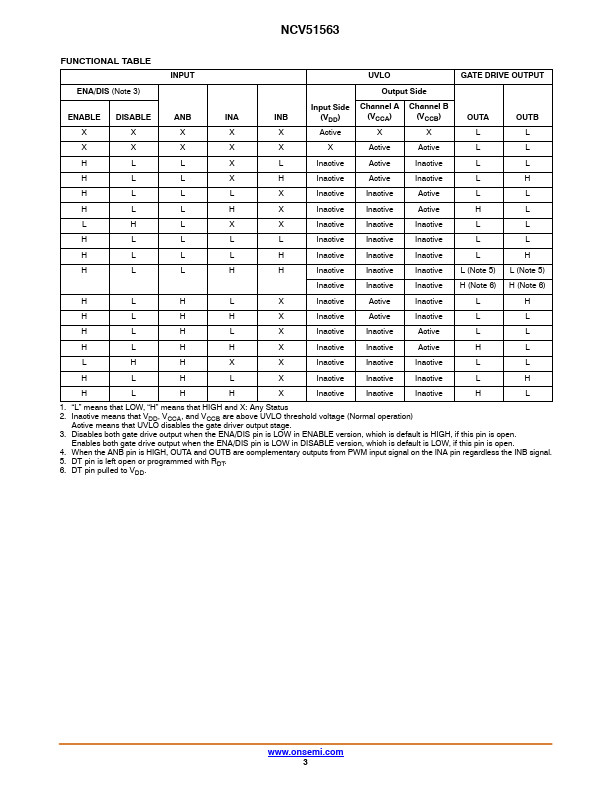

Additional preview pages of the NCV51563 datasheet.

Product details

Features

Flexible: Dual Low.
Side, Dual High.
Side or Half.
Bridge Gate Driver.
4.5.
A Peak Source, 9.
A Peak Sink Output Current Capability.
Independent UVLO Protections for Both Output Drivers.
Output Supply Voltage from 6.5 V to 30 V with 5.
V and 8.
V for MOSFET, 13.
V and 17.
V UVLO for SiC, Thresholds.
Common Mode Transient Immunity CMTI > 200 V/ns.
Propagation Delay Typical 36 ns with  5 ns Max Delay Mat.
