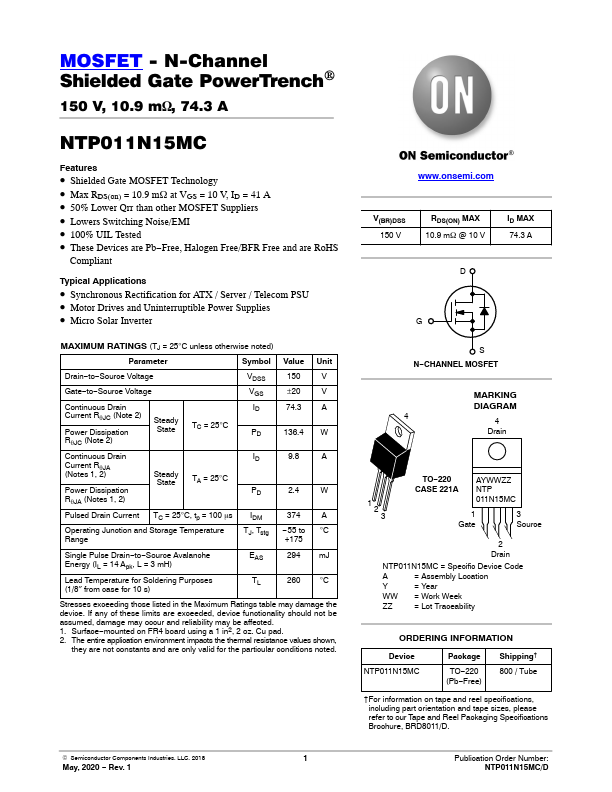

MOSFET - N-Channel Shielded Gate PowerTrench[
150 V, 10.9 mW, 74.3 A
NTP011N15MC
Features
• Shielded Gate MOSFET Technology • Max RDS(on) = 10.9 mW at VGS = 10 V, ID = 41 A • 50% Lower Qrr than other MOSFET Suppliers • Lowers Switching Noise/EMI • 100% UIL Tested • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applications
• Synchronous Rectification for ATX / Server / Telecom PSU • Motor Drives and Uninterruptible Power Supplies • Micro Solar Inverter
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain−to−Source Voltage
VDSS
150
V
Gate−to−Source Voltage
VGS
±20
V
Continuous Drain
ID
74.3 A
Current RqJC (Note 2) Steady
Power Dissipation
State
TC = 25°C
PD
136.
