SMMBD2837LT1G - Monolithic Dual Switching Diodes

SMMBD2837LT1G Description

Monolithic Dual Switching Diodes MMBD2837LT1G, MMBD2838LT1G, SMMBD2837LT1G .
98ASB42226B Electronic versions are uncontrolled except when accessed directly from the Document Repository.

SMMBD2837LT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (EACH DIODE) Rating Symbol Value Unit Peak Reverse Voltage VRM D. C. Reverse Voltage VR MM

📥 Download Datasheet

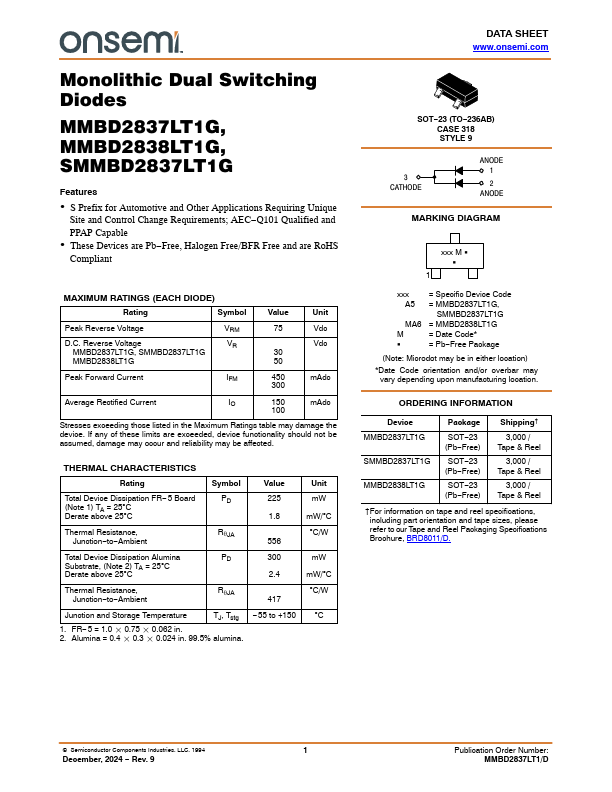

Preview of SMMBD2837LT1G PDF

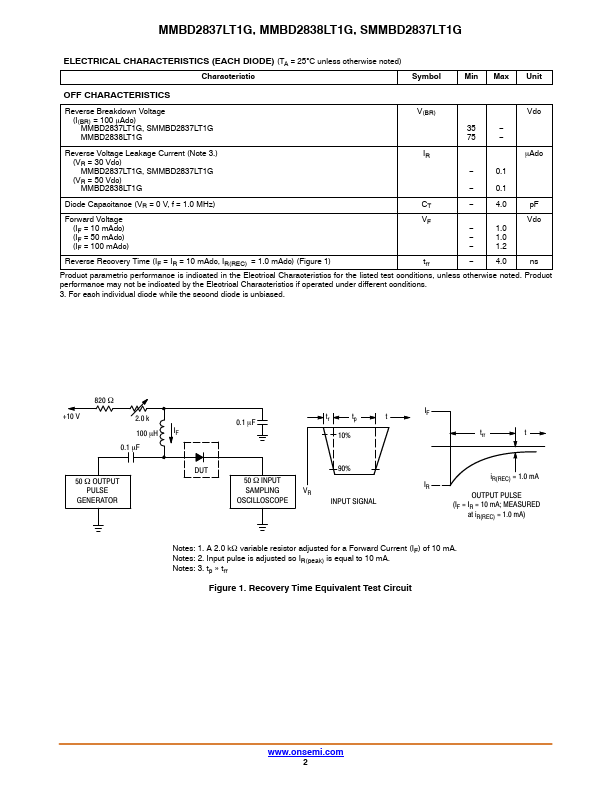

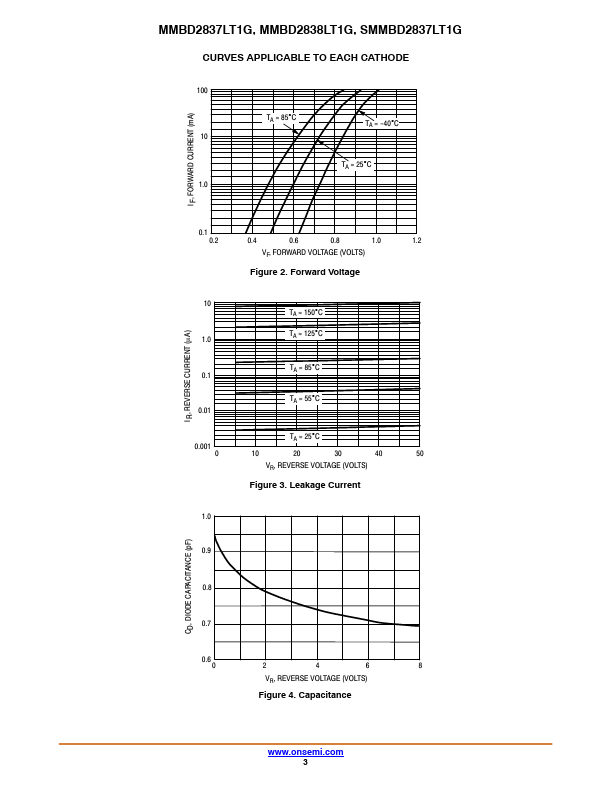

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMMBD2837LT1G
Manufacturer
onsemi
File Size
173.29 KB
Datasheet
SMMBD2837LT1G-onsemi.pdf
Description
Monolithic Dual Switching Diodes
