PE42482 - SP8T RF Switch

Product Overview

pSemi

📥 Download Datasheet

PE42482 SP8T RF Switch by pSemi - Datasheet Preview — Datasheet preview – PE42482

Datasheet Details

Part number	PE42482
Manufacturer	pSemi
File Size	791.82 KB
Description	SP8T RF Switch
Datasheet	PE42482 Datasheet

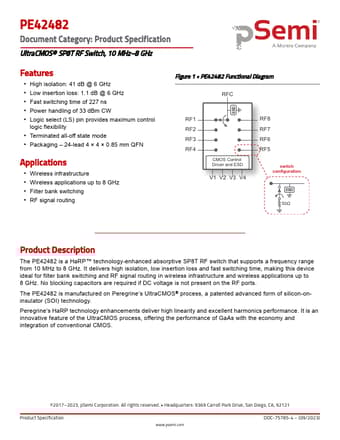

Additional preview pages of the PE42482 datasheet.

Product details

Description

The PE42482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz.

Features

High isolation: 41 dB @ 6 GHz.
Low insertion loss: 1.1 dB @ 6 GHz.
Fast switching time of 227 ns.
Power handling of 33 dBm CW.
Logic select (LS) pin provides maximum control logic flexibility.
Terminated all-off state mode.
Packaging.
24-lead 4 × 4 × 0.85 mm QFN.
