SDBTPTR3015 Datasheet - partron

SDBTPTR3015 Original Design Chip Antenna

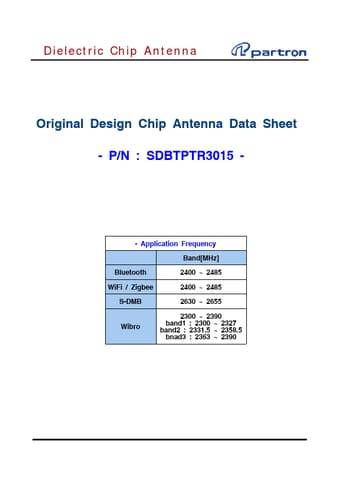

Dielectric Chip Antenna Original Design Chip Antenna Data Sheet - P/N : SDBTPTR3015 - - Application Frequency Band[MHz] Bluetooth 2400 ~ 2485 WiFi / Zigbee 2400 ~ 2485 S-DMB 2630 ~ 2655 Wibro 2300 ~ 2390 band1 : 2300 ~ 2327 band2 : 2331.5 ~ 2358.5 bnad3 : 2363 ~ 2390 Dielectric Chip Antenna SDBTPTR3015 Dimension Parameter Value[mm] LWT ABC 3.0 ± 0.1 1.5 ± 0.1 1.2 ± 0.1 1.0 0.55 0.4 DE 1.1 0.65 Unless Specified tolerances are ± 0.05 mm Dielectric Chip Antenna Aut.

SDBTPTR3015 Datasheet (613.83 KB)

Preview of SDBTPTR3015 PDF
SDBTPTR3015 Datasheet Preview Page 2 SDBTPTR3015 Datasheet Preview Page 3

Datasheet Details

Part number:

SDBTPTR3015

Manufacturer:

partron

File Size:

613.83 KB

Description:

Original design chip antenna.
