PW018N08TS - 80V N-CHANNEL MOSFET

Datasheet Details

Part number	PW018N08TS
Manufacturer	perfectway
File Size	2.70 MB
Description	80V N-CHANNEL MOSFET
Datasheet	PW018N08TS Datasheet

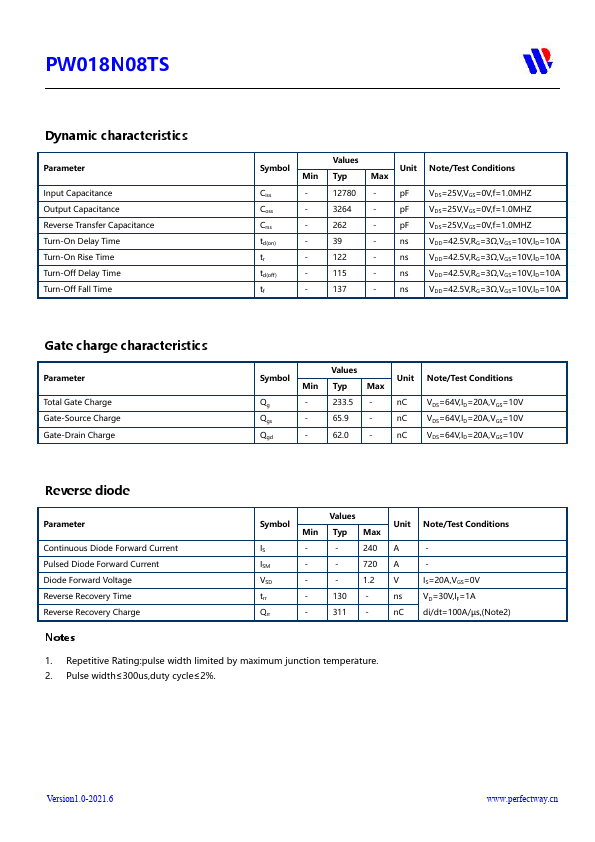

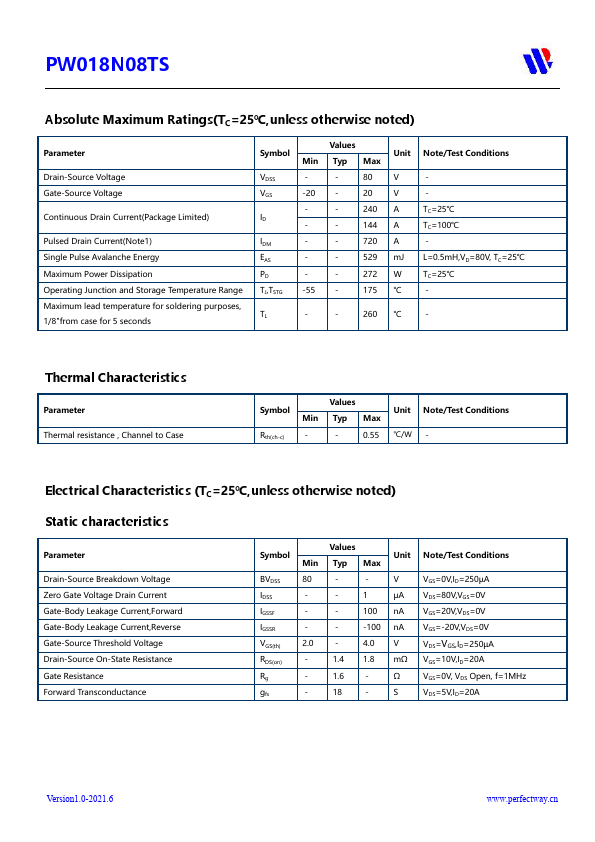

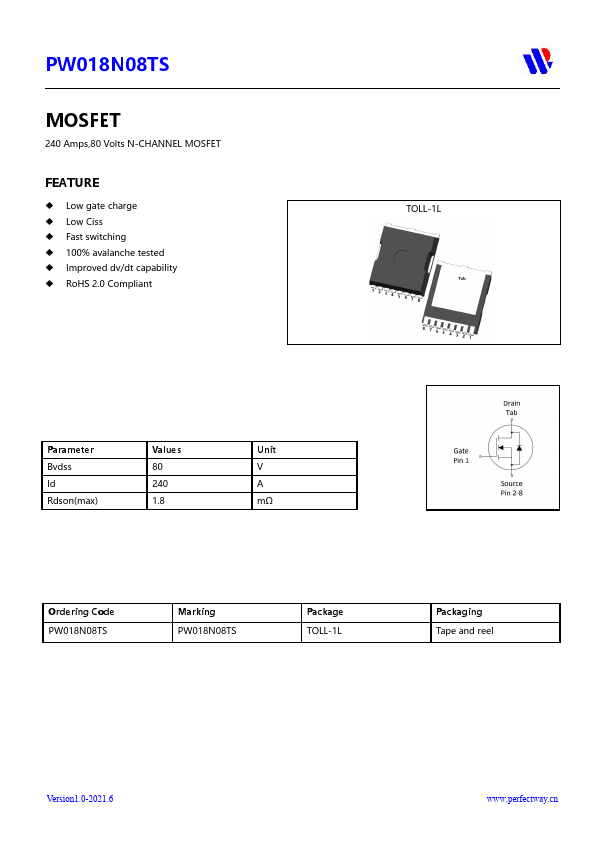

Additional preview pages of the PW018N08TS datasheet.

📁 Similar Datasheet

PW016N10TS - 100V 300A N-MOSFET (PINGWEI)
PW028N06ESL - 60V 100A MOS4 N-MOSFET (PINGWEI)
PW035N06CSL - Perfect MOS4 N-MOSFET (PINGWEI)
PW035XS4 - LCD (Prime View)
PW036XS3 - TFT-LCD module (AZ Displays)
PW038N10ESL - MOS N-MOSFET (PINGWEI)
PW045XS1 - LCD (PRIME_VIEW)
PW056XS2 - LCD (Prime View)
PW056XU2 - LCD (Prime View)
PW062XS3 - LCD (Prime View)

Other Datasheets by perfectway

Full PDF Text Transcription

Click to expand full text

PW018N08TS MOSFET 240 Amps,80 Volts N-CHANNEL MOSFET FEATURE  Low gate charge  Low Ciss  Fast switching  100% avalanche tested  Improved dv/dt capability  RoHS 2.0 Compliant TOLL-1L Parameter Bvdss Id Rdson(max) Values 80 240 1.8 Unit V A mΩ Ordering Code PW018N08TS Marking PW018N08TS Package TOLL-1L Packaging Tape and reel Version1.0-2021.6 www.perfectway.
