104-1-B-24-1D, 104-1-A-5-1D, High Voltage SIL/SIP Reed Relays

Pickering Series 104 High Voltage SIL/SIP Reed Relays Up to 3 kilovolts Stand-off Stacking on 0.25 inches pitch .

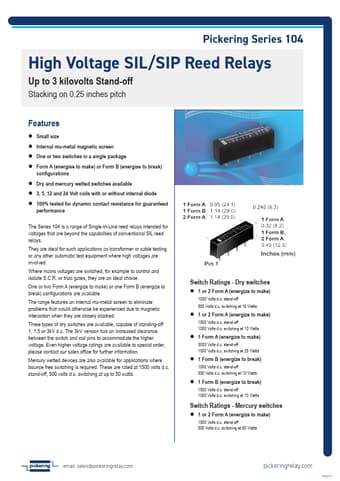

datasheet Preview Page 1 from Datasheet4u.com

104-1-A-5-1D-pickering.pdf

104-1-B-24-1D Datasheet Preview — This datasheet PDF includes multiple part numbers: 104-1-B-24-1D, 104-1-A-5-1D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

104-1-B-24-1D, 104-1-A-5-1D

Manufacturer:

pickering

File Size:

412.01 KB

Description:

High Voltage SIL/SIP Reed Relays

Note:

This datasheet PDF includes multiple part numbers: 104-1-B-24-1D, 104-1-A-5-1D.
Please refer to the document for exact specifications by model.

Features

* zz Small size zz Internal mu-metal magnetic screen zz One or two switches in a single package zz Form A (energise to make) or Form B (energise to break) configurations zz Dry and mercury wetted switches available zz 3, 5, 12 and 24 Volt coils with or without internal diode zz 100% tested for dynamic

Applications

* as transformer or cable testing or any other automatic test equipment where high voltages are involved. Where mains voltages are switched, for example to control and isolate S. C. R. or triac gates, they are an ideal choice. One or two Form A (energize to make) or one Form B (energize to break) config
