DFN-16 OUTLINE & DIMENSIONS

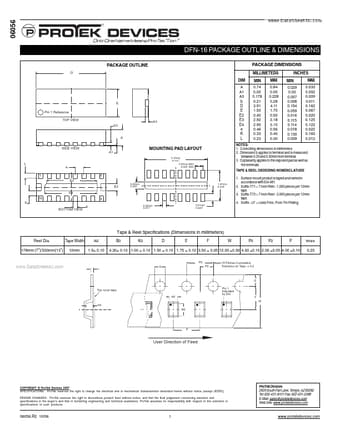

06056 Only One Name Means ProT ek’Tion™ DFN-16 PACKAGE OUTLINE & DIMENSIONS PACKAGE OUTLINE D PACKAGE DIMENSIONS MILLIMETERS DIM A A1 A3 b D E E2 E3 E4 e K L MIN 0.74 0.00 0.178 0.21 3.91 1.50 0.40 2.92 2.90 0.46 0.33 0.23 MAX 0.84 0.05 0.228 0.28 4.11 1.70 0.50 3.18 3.10 0.56 0.40 0.30 INCHES MIN 0.029 0.00 0.007 0.008 0.154 0.059 0.016 0.115 0.114 0.018 0.130 0.009 MAX 0.033 0.002 0.009 0.011 0.162 0.067 0.020 0.125 0.122 0.022 0.160 0.012 E Pin 1 Reference TOP VIEW A3 A SIDE VIEW A3 A1 .

DFN-16_protekdevices.pdf

DFN-16 Datasheet Preview — Preview of DFN-16 PDF

Datasheet Details

Part number:

DFN-16

Manufacturer:

protekdevices

File Size:

77.71 KB

Description:

Outline & dimensions.
