QPA5368 Datasheet - qorvo

CATV Return Path MCM 300MHz 35dB

QPA5368 Features

* Excellent Linearity

* Extremely High Output Capability

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable under all Terminations

* 35.6 dB Typical Gain at 300MHz

QPA5368 General Description

The QPA5368 is an Integrated Reverse Amplifier Module. The part employs Silicon Bipolar die, has high output capability and is operated from 5 MHz to 300 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. Functional Block Diagram Tempe.

QPA5368 Datasheet (361.70 KB)

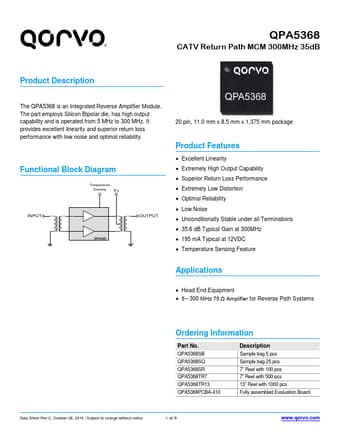

QPA5368 Datasheet Preview — Preview of QPA5368 PDF

Datasheet Details

Part number:

QPA5368

Manufacturer:

qorvo

File Size:

361.70 KB

Description:

Catv return path mcm 300mhz 35db.
