X2010 - (X2010 / X2011) FM Narrow Band Transceiver Modules

X2010 Description

FM Narrow Band Transceiver Modules X2010 / X2011 .
The X2010 radio transceiver module was designed to provide reliable wireless operation at moderate data rates for use throughout the world.

X2010 Features

* Operation on 434.075, 868.40 and 914.5 MHz
* X2011 version includes integrated pcb loop antenna (434 & 868 MHz versions)
* Double RF filtering = High Reliability RF Link Data rates to 20 kbps (Wide-band

X2010 Applications

* EPOS Terminals
* Wireless Networking
* Domestic And Commercial Systems Wireless Security

📥 Download Datasheet

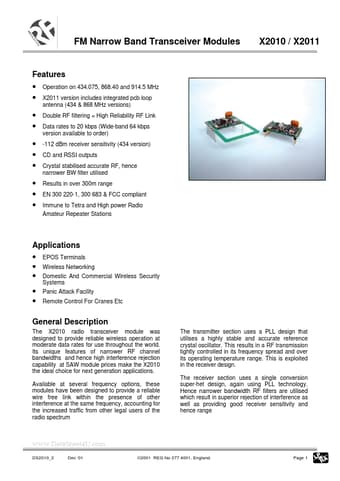

Preview of X2010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
X2010
Manufacturer
rfsolutions
File Size
83.80 KB
Datasheet
X2010_rfsolutions.pdf
Description
(X2010 / X2011) FM Narrow Band Transceiver Modules
