LVS16260C580 Chip Varistor

The LVS series is metal oxide based chip varistor for transient voltage suppression. They have non-linear voltage-current behavior, similar to zener diode. Multilayer structured varistor, however, shows superiority in electrical reliability than zener diode, since each grain exhibits small p-n junct.

LVS16260C580 Features

* Chip varistor provides high reliability on surface mounting

* Wide range of working voltage (VW = 5.6V˜30V)

* Good clamping ratio and low leakage current

* Electroplating of Ni and solder gives higher solderability

* Wide operating temperature (-55˜125°C )

* Various capacitance i

LVS10056B160-rhopointcomponents.pdf

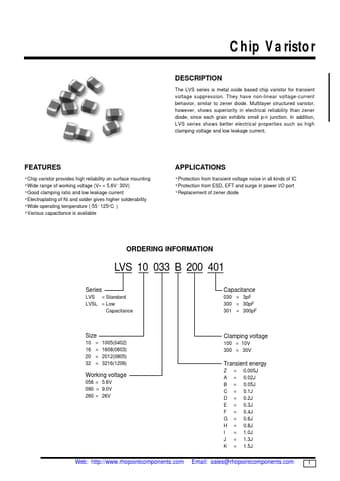

LVS16260C580 Datasheet Preview — This datasheet PDF includes multiple part numbers: LVS16260C580, LVS10056B160. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LVS16260C580, LVS10056B160

Manufacturer:

rhopointcomponents

File Size:

464.25 KB

Description:

Chip varistor.

Note:

This datasheet PDF includes multiple part numbers: LVS16260C580, LVS10056B160.
Please refer to the document for exact specifications by model.
