LVS20056C160

Chip Varistor

LVS20056C160 Features

* Chip varistor provides high reliability on surface mounting

* Wide range of working voltage (VW = 5.6V˜30V)

* Good clamping ratio and low leakage current

* Electroplating of Ni and solder gives higher solderability

* Wide operating temperature (-55˜125°C )

* Various capacitance i

LVS20056C160 General Description

The LVS series is metal oxide based chip varistor for transient voltage suppression. They have non-linear voltage-current behavior, similar to zener diode. Multilayer structured varistor, however, shows superiority in electrical reliability than zener diode, since each grain exhibits small p-n junct.

LVS20056C160 Datasheet (464.25 KB)

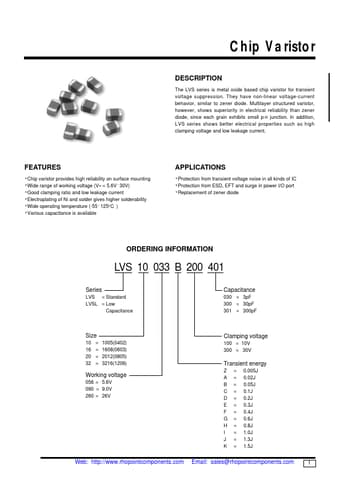

Preview of LVS20056C160 PDF

Datasheet Details

Part number:

LVS20056C160

Manufacturer:

rhopointcomponents

File Size:

464.25 KB

Description:

Chip varistor.
