AC1005 - 5 Amp Current Transformer

Datasheet Details

Part number	AC1005
Manufacturer	talema
File Size	34.32 KB
Description	5 Amp Current Transformer
Datasheet	AC1005 Datasheet
Additional preview pages of the AC1005 datasheet.

📁 Similar Datasheet

AC100 - NF Triode (TELEFUNKEN)
AC1008 - 5 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER (ETC)
AC100X - 100 Watt Open Frame AC-DC Modules (Intronics)
AC10 - Wirewound Resistors (Vishay)
AC10 - Axial Coated Inductors (Allied Components International)
AC10-100K-RC - Axial Coated Inductors (Allied Components International)
AC10-101K-RC - Axial Coated Inductors (Allied Components International)
AC10-102K-RC - Axial Coated Inductors (Allied Components International)
AC10-120K-RC - Axial Coated Inductors (Allied Components International)
AC10-121K-RC - Axial Coated Inductors (Allied Components International)

Other Datasheets by talema

Full PDF Text Transcription

Click to expand full text

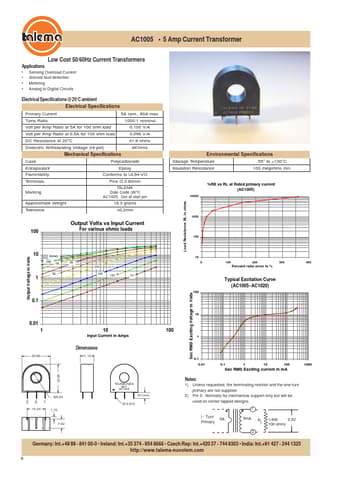

AC1005 • 5 Amp Current Transformer Low Cost 50/60Hz Current Transformers Applications • Sensing Overload Current • Ground fault detection • Metering • Analog to Digital Circuits Electrical Specifications @ 20°C ambient Electrical Specifications Primary Current 5A nom., 60A max. Turns Ratio 1000:1 nominal Volt per Amp Ratio at 5A for 100 ohm load 0.100 V/A Volt per Amp Ratio at 0.5A for 100 ohm load 0.096 V/A DC Resistance at 20°C 41.8 ohms Dielectric Withstanding Voltage (Hi-pot) 4KVrms Mechanical Specifications Case Polycarbonate Encapsulant Epoxy Flammibility Conforms to UL94-VO Terminals Pins Ø 0.80mm Marking TALEMA Date Code (W/Y) AC1005, Dot at start pin Approximate Weight 16.3 grams Tolerance ±0.
