TJA1040T - High-speed CAN transceiver

Description

The TJ A1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

It is primarily intended for high-speed applications, up to 1 MBaud, in in-vehicle, industry control and other fields.

Features

  • Fully compatible with the ISO 11898 standard.
  • Thermally protected.
  • Input levels compatible with 3.3 V and 5 V devices.
  • Transmit Data (TXD) dominant time-out function.
  • Very low-current standby mode with remote wake-up Capability via the bus: 5μA Typical.
  • Transceiver in unpowered state disengages from the bus (zero load).
  • At least 110 nodes can be connected.
  • High speed (up to 1 MBaud).
  • Very low Electro Magnetic Emiss.

📥 Download Datasheet

Datasheet preview – TJA1040T

Datasheet Details

Part number TJA1040T
Manufacturer tokmas
File Size 2.27 MB
Description High-speed CAN transceiver
Datasheet download datasheet TJA1040T Datasheet
Additional preview pages of the TJA1040T datasheet.

📁 Similar Datasheet

  • TJA1040T - High speed CAN transceiver (NXP)
  • TJA1040 - High speed CAN transceiver (NXP)
  • TJA1040 - High speed CAN transceiver (JSMICRO)
  • TJA1040U - High speed CAN transceiver (NXP)
  • TJA1041 - High speed CAN transceiver (NXP)
  • TJA1041A - High speed CAN transceiver (NXP)
  • TJA1042 - High-speed CAN Transceiver (NXP)
  • TJA1043 - High-speed CAN transceiver (NXP)
  • TJA1044 - High-speed CAN transceiver (NXP)
  • TJA1044V - High-speed CAN transceiver (NXP)
Other Datasheets by tokmas

    Full PDF Text Transcription

    Click to expand full text

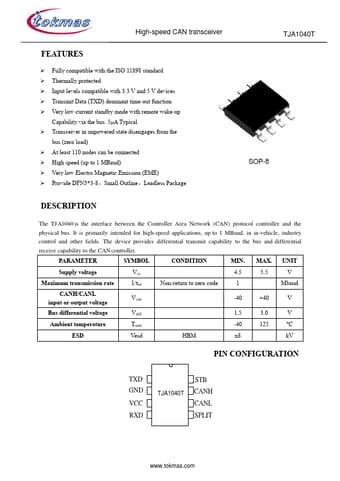

    High-speed CAN transceiver FEATURES ➢ Fully compatible with the ISO 11898 standard ➢ Thermally protected ➢ Input levels compatible with 3.3 V and 5 V devices ➢ Transmit Data (TXD) dominant time-out function ➢ Very low-current standby mode with remote wake-up Capability via the bus: 5μA Typical ➢ Transceiver in unpowered state disengages from the bus (zero load) ➢ At least 110 nodes can be connected ➢ High speed (up to 1 MBaud) ➢ Very low Electro Magnetic Emission (EME) ➢ Provide DFN3*3-8，Small Outline，Leadless Package TJA1040T SOP-8 DESCRIPTION The TJ A1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high-speed applications, up to 1 MBaud, in in-vehicle, industry control and other fields.
