P6103AS8 5V/12V Synchronous-Rectified Buck Controller

The uP6103 is a compact synchronous-rectified buck controller specifically designed to operate from 5V or 12V supply voltage and to deliver high quality output voltage as low as 0.4V. These SOP-8 and PSOP-8 devices operate at fixed 200/300 kHz frequency and provide an optimal level of integration to.

P6103AS8 Features

* include internal softstart, undervoltage protection, overcurrent protection and shutdown function. With aforementioned functions, this part provides customers a compact, high efficiency, well-protected and cost-effective solutions. This part is available in SOP-8 and PSOP-8 packages. † 3.3V to 12V V

uP6-103.pdf

This datasheet PDF includes multiple part numbers: P6103AS8, uP6. Please refer to the document for exact specifications by model.

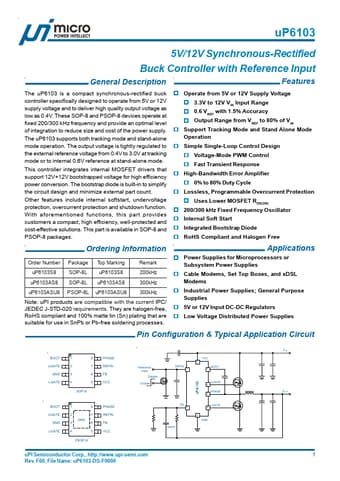

P6103AS8 Datasheet Preview Page 2 P6103AS8 Datasheet Preview Page 3

Datasheet Details

Part number:

P6103AS8, uP6

Manufacturer:

uPI Semiconductor

File Size:

404.09 KB

Description:

5v/12v synchronous-rectified buck controller.

Note:

This datasheet PDF includes multiple part numbers: P6103AS8, uP6.
Please refer to the document for exact specifications by model.
