A5SHB P-Channel Enhancement Mode Power MOSFET

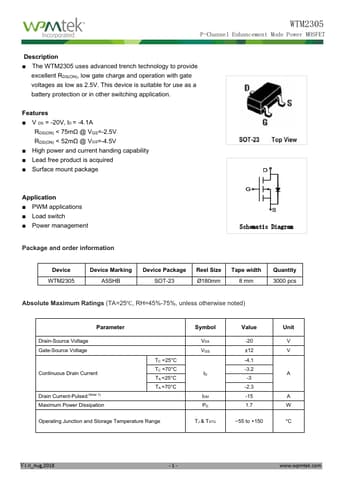

📥 Download Datasheet  Datasheet Preview Page 1

Description

WTM2305 P-Channel Enhancement Mode Power MOSFET .
The WTM2305 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

📥 Download Datasheet

Preview of A5SHB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
A5SHB
Manufacturer
wpmtek
File Size
758.96 KB
Datasheet
A5SHB-wpmtek.pdf
Description
P-Channel Enhancement Mode Power MOSFET

Features

* V DS = -20V, lD = -4.1A RDS(ON) < 75mΩ @ VGS=-2.5V RDS(ON) < 52mΩ @ VGS=-4.5V
* High power and current handing capability
* Lead free product is acquired

Applications

* Load switch
* Power management Schematic Diagram Package and order information Device WTM2305 Device Marking A5SHB Device Package SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 pcs Absolute Maximum Ratings (TA=25℃, RH=45%-75%, unless otherwise noted) Parameter Drain-Source
