LM358A - 36V General Purpose Op Amps

Download the LM358A datasheet PDF. This datasheet also covers the LM321A variant, as both devices belong to the same 36v general purpose op amps family and are provided as variant models within a single manufacturer datasheet.

General Description

The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response.

Key Features

  • Supply Voltage: 3V to 36V.
  • Low Supply Current: 100μA per channel.
  • Input Common-Mode Voltage Range Includes Ground.
  • Can Work as Comparator.
  • Rail to Rail Output.
  • Bandwidth: 0.9 MHz.
  • Slew Rate: 0.5V/μs.
  • Excellent EMI Suppress Performance: 71dB at 1GHz.
  • Offset Voltage: ±3mV Maximum.
  • Offset Voltage Temperature Drift: 7 μV/°C.
  • 40°C to 125°C Operation Temperature Range.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM321A-3Peak.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LM358A
Manufacturer 3PEAK
File Size 1.10 MB
Description 36V General Purpose Op Amps
Datasheet download datasheet LM358A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM358A Low-power dual operational amplifiers STMicroelectronics
LM358A Industry-Standard Dual Operational Amplifiers Texas Instruments
LM358A Low Power Dual Operational Amplifiers National Semiconductor
LM358A Dual Operational Amplifier Fairchild Semiconductor
LM358A Single Supply Dual Operational Amplifiers ON Semiconductor

Other Datasheets by 3PEAK

Part Number Description
LM358 Low-Power 36V Op Amps
LM321 Low-Power 36V Op Amps
LM321A 36V General Purpose Op Amps
LM324 Low-Power 36V Op Amps
LM324A 36V General Purpose Op Amps

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

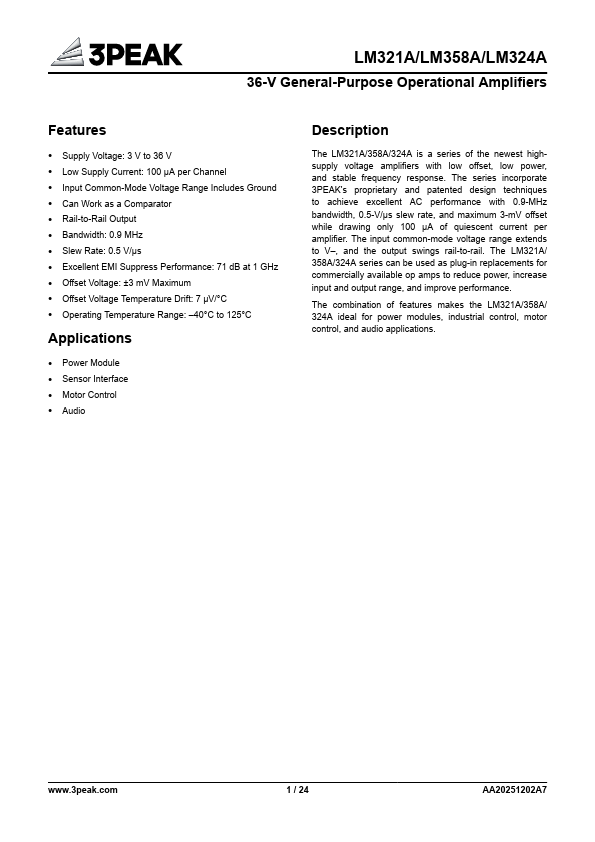

Features ⚫ Supply Voltage: 3V to 36V ⚫ Low Supply Current: 100μA per channel ⚫ Input Common-Mode Voltage Range Includes Ground ⚫ Can Work as Comparator ⚫ Rail to Rail Output ⚫ Bandwidth: 0.9 MHz ⚫ Slew Rate: 0.5V/μs ⚫ Excellent EMI Suppress Performance: 71dB at 1GHz ⚫ Offset Voltage: ±3mV Maximum ⚫ Offset Voltage Temperature Drift: 7 μV/°C ⚫ –40°C to 125°C Operation Temperature Range Applications ⚫ Power Module ⚫ Sensor Interface ⚫ Motor Control ⚫ Audio Pin Configuration LM321A/ LM358A/ LM324A 36V General Purpose Op Amps Description The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 0.
