LM393A - 36V Low Power Comparators

This page provides the datasheet information for the LM393A, a member of the LM331A 36V Low Power Comparators family.

Datasheet Summary

Description

The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate.

Features

  • Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V.
  • Very Low Supply Current (150 μA/ch).
  • Low Input Bias Current: 1 nA maximum.
  • Low Offset Voltage: ±6.0 mV maximum.
  • Input Common-mode Voltage Range Includes Ground.
  • Internal Differential Input Voltage Range Equal to The Supply Voltage.
  • Low Output Saturation.
  • 40°C to 125°C Operation Range.
  • ESD Rating: HBM 4 kV, CDM 2 kV.

📥 Download Datasheet

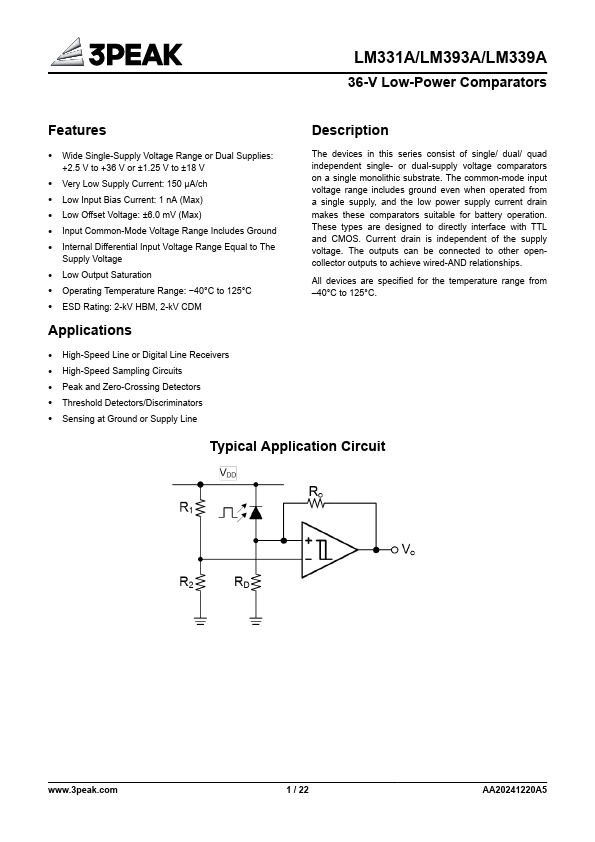

Datasheet preview – LM393A

Datasheet Details

Part number LM393A
Manufacturer 3PEAK
File Size 791.30 KB
Description 36V Low Power Comparators
Datasheet download datasheet LM393A Datasheet

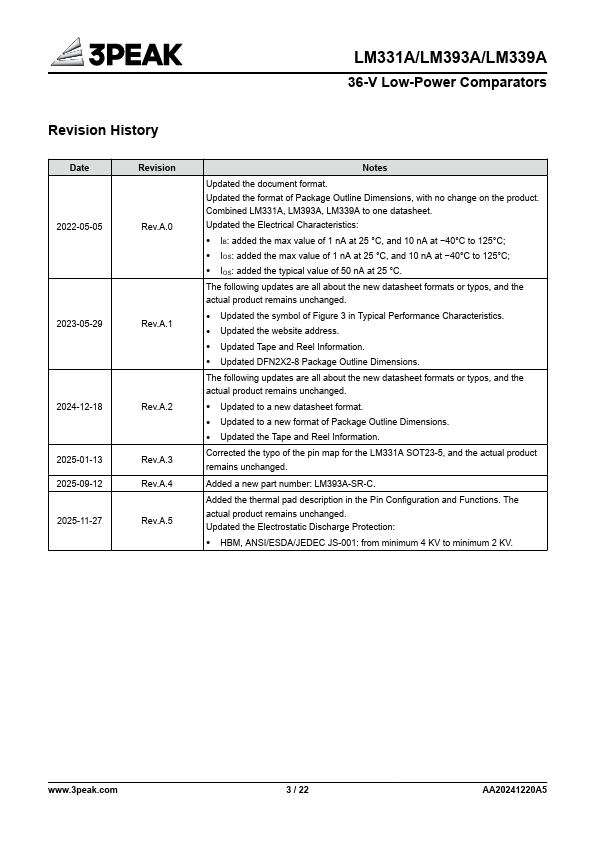

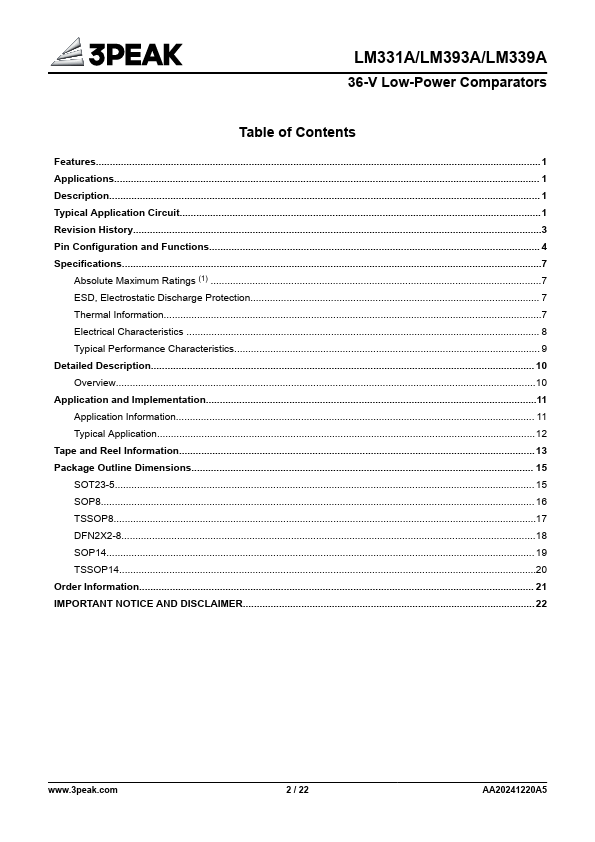

Additional preview pages of the LM393A datasheet.
