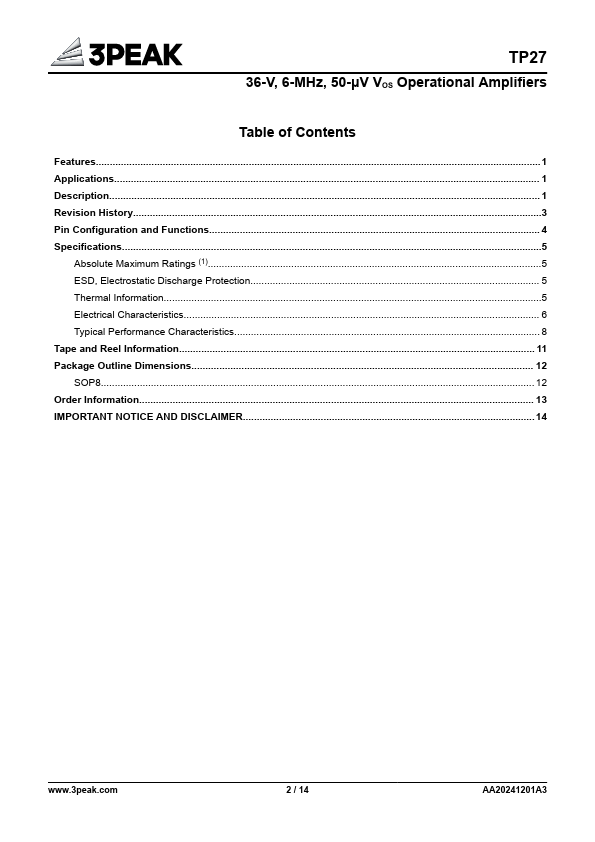

TP27 page 2
Page 2
TP27 page 3
Page 3

TP27 Key Features

  • Supply Voltage: 4.5 V to 36 V
  • Offset Voltage: ±50 μV (Max)
  • Differential Input Voltage Range to Supply Rail, can
  • Input Rail to -VS, Rail-to-Rail Output
  • Drive any Capacitive Load
  • Bandwidth: 6 MHz, Slew Rate: 5 V/μs
  • Excellent EMI Suppress Performance: 85 dB at 1 GHz
  • Over-Temperature Protection
  • Low Noise: 8 nV/√Hz at 1 kHz
  • 2-kV HBM, 1-kV CDM, 500-mA Latch Up

TP27 Description
