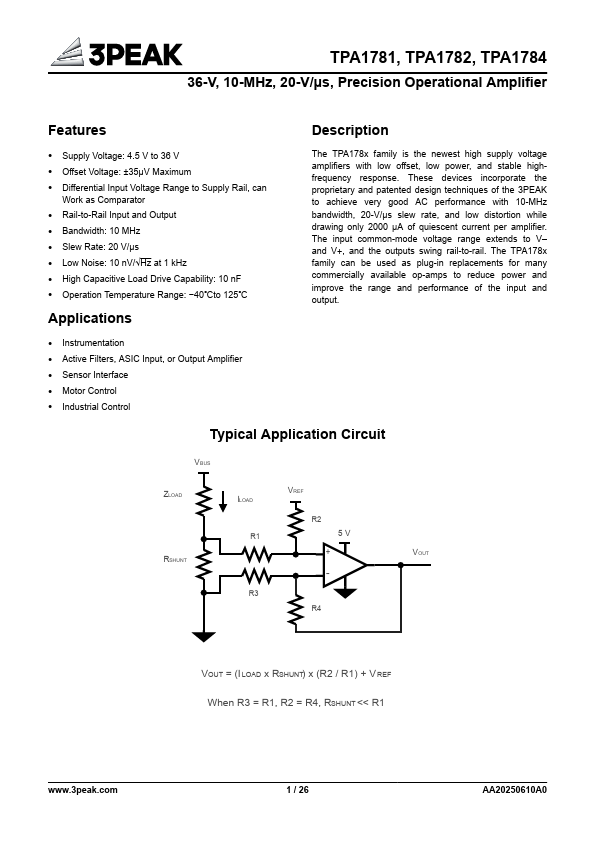

TPA1781 Key Features
- Supply Voltage: 4.5 V to 36 V
- Offset Voltage: ±35μV Maximum
- Differential Input Voltage Range to Supply Rail, can
- Rail-to-Rail Input and Output
- Bandwidth: 10 MHz
- Slew Rate: 20 V/μs
- Low Noise: 10 nV/√Hz at 1 kHz
- High Capacitive Load Drive Capability: 10 nF
- Operation Temperature Range: -40℃to 125℃
