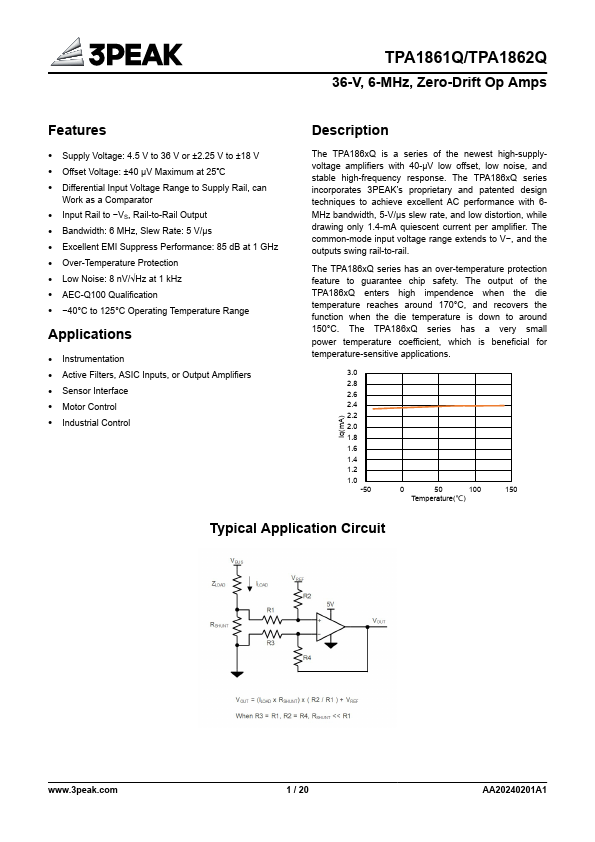

Download TPA1861Q Datasheet PDF
TPA1861Q datasheet preview

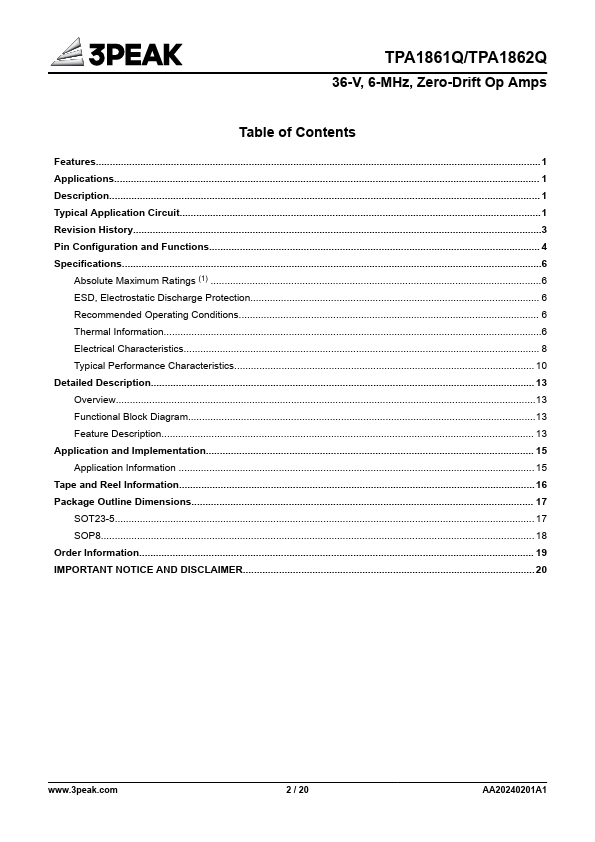

TPA1861Q page 2
Page 2

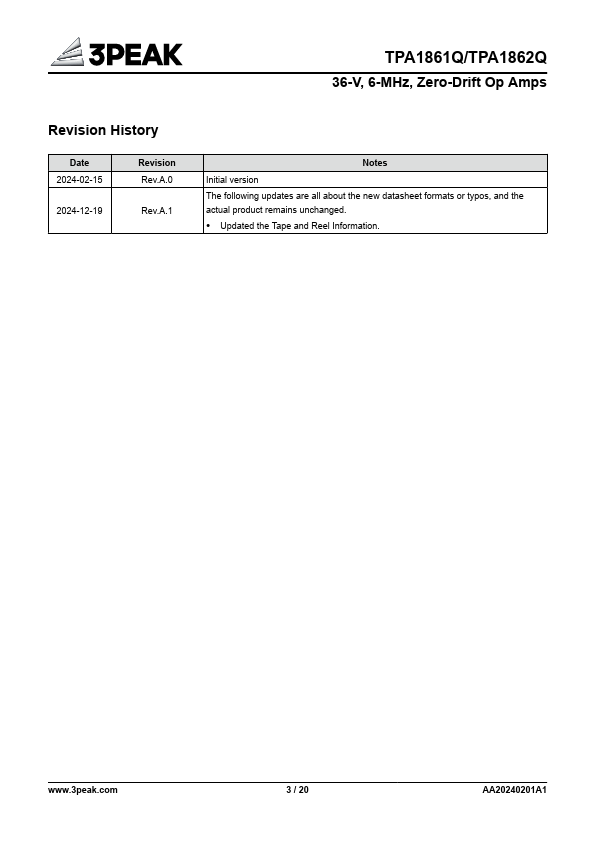

TPA1861Q page 3
Page 3

TPA1861Q Key Features

  • Supply Voltage: 4.5 V to 36 V or ±2.25 V to ±18 V
  • Offset Voltage: ±40 μV Maximum at 25℃
  • Differential Input Voltage Range to Supply Rail, can
  • Input Rail to -VS, Rail-to-Rail Output
  • Bandwidth: 6 MHz, Slew Rate: 5 V/μs
  • Excellent EMI Suppress Performance: 85 dB at 1 GHz
  • Over-Temperature Protection
  • Low Noise: 8 nV/√Hz at 1 kHz
  • AEC-Q100 Qualification
  • 40°C to 125°C Operating Temperature Range

Related 3PEAK Datasheets

Part Number Description
TPA1861 Zero-Drift Op Amps
TPA1862 Zero-Drift Op Amps
TPA1862Q Zero-Drift Op Amps
TPA1864 Zero-Drift Op Amps
TPA1811 Zero-Drift Op Amps

TPA1861Q Description

The TPA186xQ is a series of the newest high-supplyvoltage amplifiers with 40-μV low offset, low noise, and stable high-frequency response. The TPA186xQ series incorporates 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 6MHz bandwidth, 5-V/μs slew rate, and low distortion, while drawing only 1.4-mA quiescent current per amplifier. The mon-mode input voltage range extends...
