TPA2644-Q100 Overview

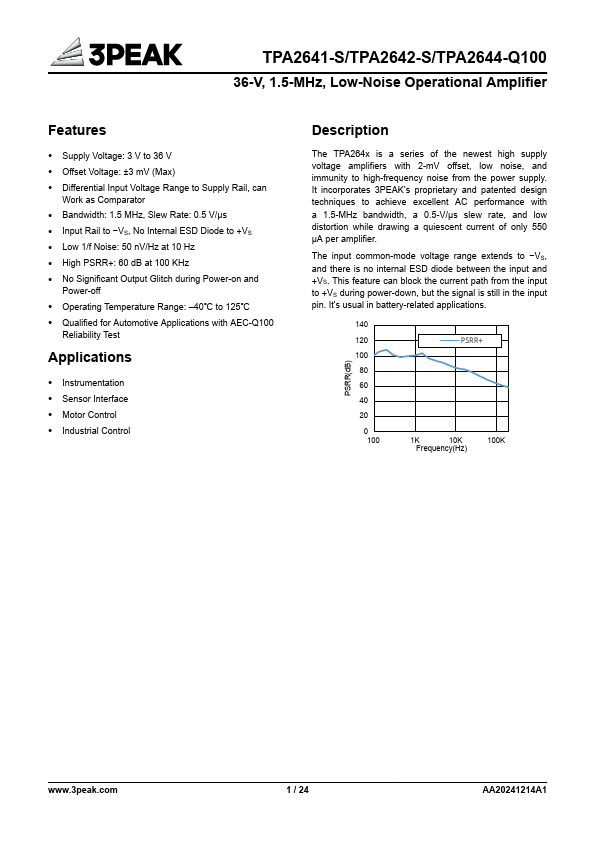

Description
The TPA264x is a series of the newest high supply voltage amplifiers with 2-mV offset, low noise, and immunity to high-frequency noise from the power supply. It incorporates 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with a 1.5-MHz bandwidth, a 0.5-V/μs slew rate, and low distortion while drawing a quiescent current of only 550 μA per amplifier.
Key Features
- Supply Voltage: 3 V to 36 V
- Offset Voltage: ±3 mV (Max)
- Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Bandwidth: 1.5 MHz, Slew Rate: 0.5 V/μs
- Input Rail to -VS, No Internal ESD Diode to +VS
