| Part | TPA2672 |
|---|---|
| Description | Operational Amplifiers |
| Category | Operational Amplifier |
| Manufacturer | 3PEAK |
| Size | 2.36 MB |

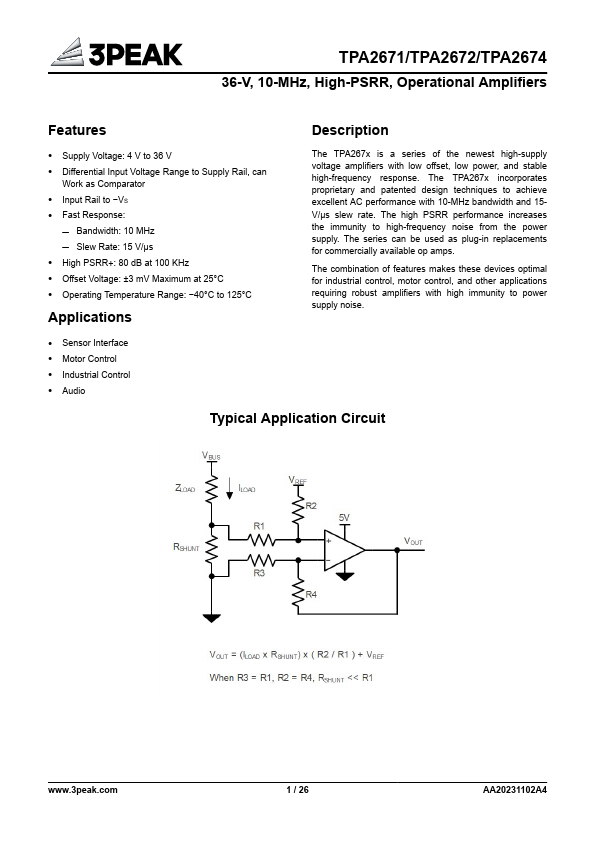

Supply Voltage: 4 V to 36 V Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -VS Fast Response: - Bandwidth: 10 MHz - Slew Rate: 15 V/μs High PSRR+: 80 dB at 100 KHz Offset Voltage: ±3 mV Maximum at 25°C Operating Temperature Range: -40°C to 125°C.
| Part Number | Manufacturer | Description |
|---|---|---|
| LM358 | STMicroelectronics | Low-power dual operational amplifiers |
| LM358 | National Semiconductor | Low Power Dual Operational Amplifiers |
| TL084 | STMicroelectronics | General purpose JFET quad operational amplifiers |
