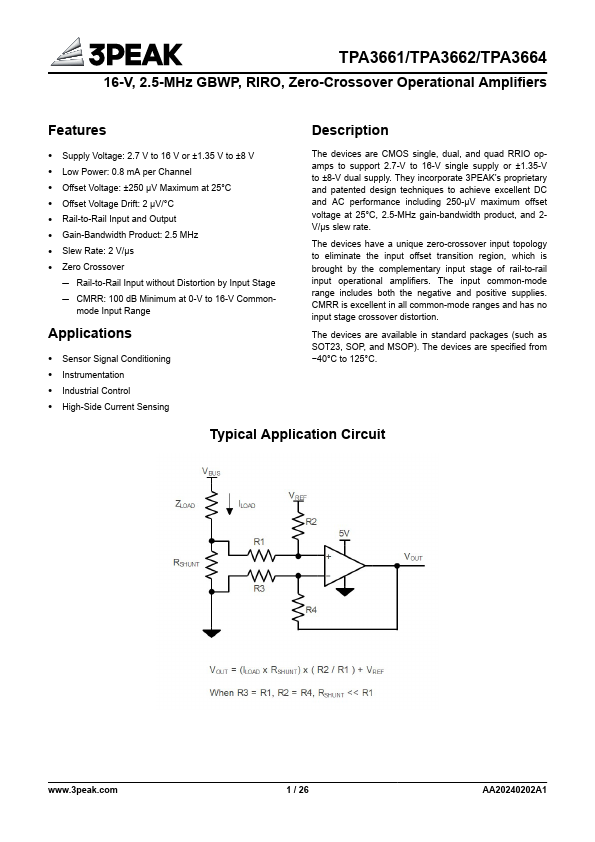

TPA3664 Description
2.7 V to 16 V or ±1.35 V to ±8 V Low Power: 0.8 mA per Channel Offset Voltage: ±250 μV Maximum at 25°C Offset Voltage Drift:.
TPA3664 Key Features
- Supply Voltage: 2.7 V to 16 V or ±1.35 V to ±8 V
- Low Power: 0.8 mA per Channel
- Offset Voltage: ±250 μV Maximum at 25°C
- Offset Voltage Drift: 2 μV/°C
- Rail-to-Rail Input and Output
- Gain-Bandwidth Product: 2.5 MHz
- Slew Rate: 2 V/μs
- Zero Crossover
- Rail-to-Rail Input without Distortion by Input Stage
- CMRR: 100 dB Minimum at 0-V to 16-V mon
