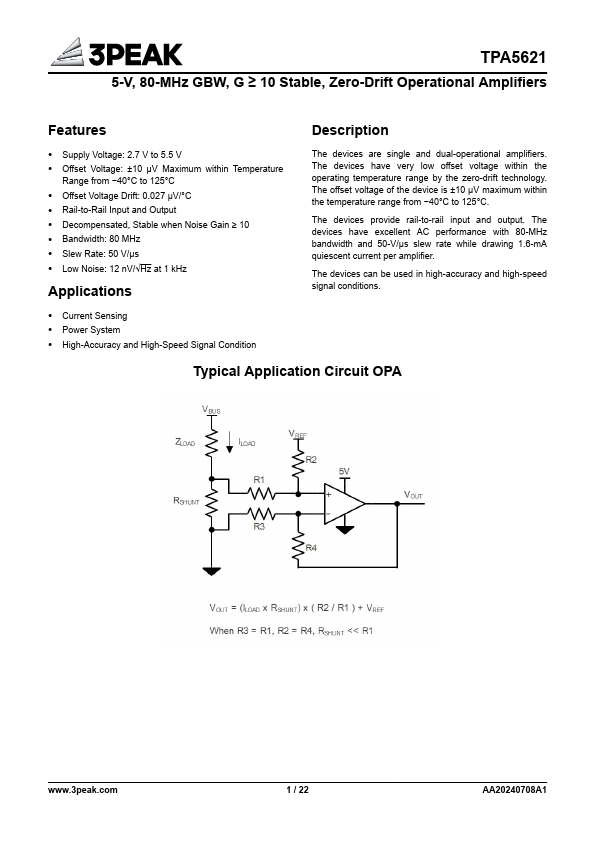

TPA5621
Features
Description
- Supply Voltage: 2.7 V to 5.5 V
- Offset Voltage: ±10 μV Maximum within Temperature
Range from
- 40°C to 125°C
- Offset Voltage Drift: 0.027 μV/°C
- Rail-to-Rail Input and Output
- Depensated, Stable when Noise Gain ≥ 10
- Bandwidth: 80 MHz
- Slew Rate: 50 V/μs
- Low Noise: 12 n V/√Hz at 1 k Hz
Applications
The devices are single and dual-operational amplifiers. The devices have very low offset voltage within the operating temperature range by the zero-drift technology. The offset voltage of the device is ±10 μV maximum within the temperature range from
- 40°C to 125°C.
The devices provide rail-to-rail input and output. The devices have excellent AC performance with 80-MHz bandwidth and 50-V/μs slew rate while drawing 1.6-m A quiescent current per amplifier.
The devices can be used in high-accuracy and high-speed signal conditions.
- Current Sensing
- Power System
- High-Accuracy and High-Speed Signal Condition
Typical Application Circuit OPA
