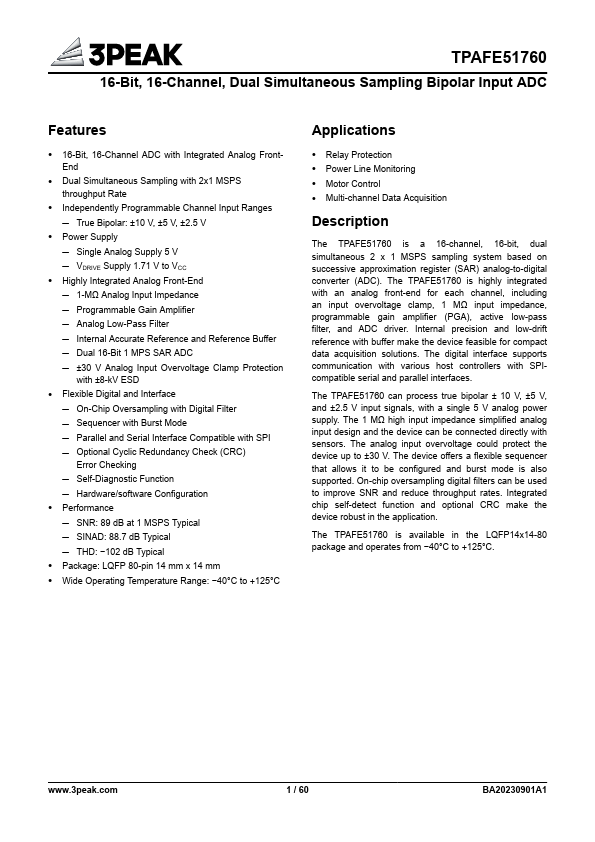

TPAFE51760 Description
The TPAFE51760 is a 16-channel, 16-bit, dual simultaneous 2 x 1 MSPS sampling system based on successive approximation register (SAR) analog-to-digital converter (ADC). The TPAFE51760 is highly integrated with an analog front-end for each channel, including an input overvoltage clamp, 1 MΩ input impedance, programmable gain amplifier (PGA), active low-pass filter, and ADC driver. Internal precision and low-drift...
TPAFE51760 Key Features
- 16-Bit, 16-Channel ADC with Integrated Analog Front
- Dual Simultaneous Sampling with 2x1 MSPS
- Independently Programmable Channel Input Ranges
- True Bipolar: ±10 V, ±5 V, ±2.5 V
- Power Supply
- Single Analog Supply 5 V
- VDRIVE Supply 1.71 V to VCC
- Highly Integrated Analog Front-End
- 1-MΩ Analog Input Impedance
- Programmable Gain Amplifier
