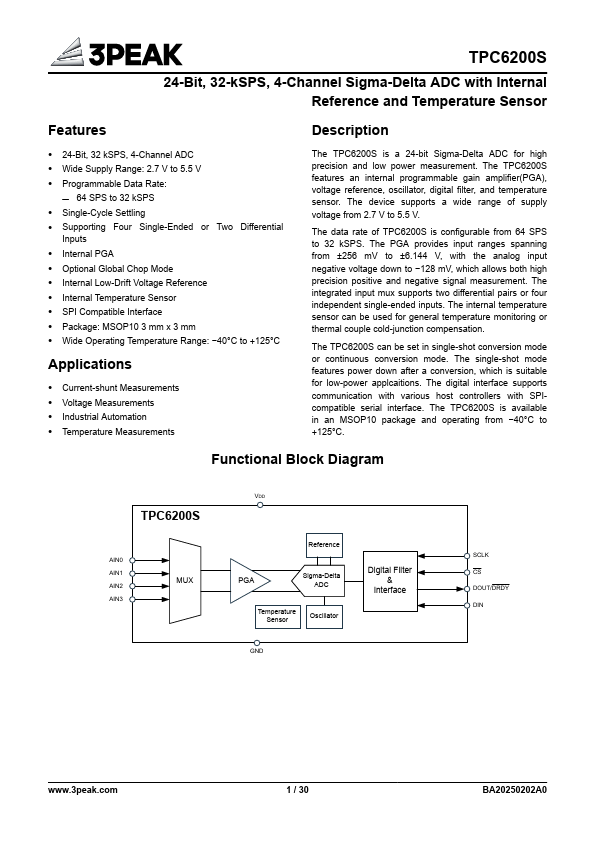

TPC6200S Overview
Description
The TPC6200S is a 24-bit Sigma-Delta ADC for high precision and low power measurement. The TPC6200S features an internal programmable gain amplifier(PGA), voltage reference, oscillator, digital filter, and temperature sensor.
Key Features
- 24-Bit, 32 kSPS, 4-Channel ADC
- Wide Supply Range: 2.7 V to 5.5 V
- Programmable Data Rate: – 64 SPS to 32 kSPS
- Single-Cycle Settling
- Supporting Four Single-Ended or Two Differential Inputs
- Internal PGA
- Optional Global Chop Mode
- Internal Low-Drift Voltage Reference
- Internal Temperature Sensor
- SPI Compatible Interface
