TPL8536Q
TPL8536Q is Low Quiescent Current Low-Dropout Linear Regulator manufactured by 3PEAK.
Features
- Qualified for Automotive Applications
- AEC-Q100 Grade 1, TA:
- 40°C to +125°C
- Junction Temperature, TJ:
- 40°C to +150°C
- Input Voltage: 4 V to 42 V, with 45-V Transient
- Output Voltage:
- Fixed 5 V and 3.3 V
- ±2% Output Accuracy over Line Regulation, Load
Regulation, and Operating Temperature Range
- 300-m A Maximum Output Current
- Low Dropout Voltage: 500-m V Maximum at 300-m A
Load Current
- Low Current Consumption:
- 0.5-μA Typical Shutdown Current (EN = LOW)
- 6-μA Typical Quiescent Current (n WDEN = VOUT)
- Window and Standard Watchdog Configurable
- Open/Closed Window Ratio 1:1 or 8:1 Configurable
- Adjustable Watchdog Period from 10 ms to 2 s
- Accurate Watchdog Period: ±10% Maximum when t WD ≤ 500 ms
- n WDEN Pin to Turn On or Turn Off the Watchdog
Function
- Adjustable Power-Good Threshold
- Adjustable Power-Good Delay Period
- Stable with 4.7-μF to 500-μF Output Capacitor with
ESR Range from 0.001 Ω to 20 Ω
- Integrated Protection:
- Over-Current Protection
- Over-Temperature Protection
- Package Option:
- ETSSOP16
Applications
- Automotive Clusters and Infotainment
- Automotive BCM and HVAC System
- Automotive Electric Gear Shifter
- Automotive Battery Management System
Description
The TPL8536Q series prises wide-input LDO products with an integrated watchdog timer, capable of delivering up to 300 m A. These devices can operate within a voltage range from 4 V to 42 V, with a maximum transient voltage of 45 V. Their ability to function reliably with a minimum voltage of 4 V makes them suitable for cold-crank and start-stop scenarios.

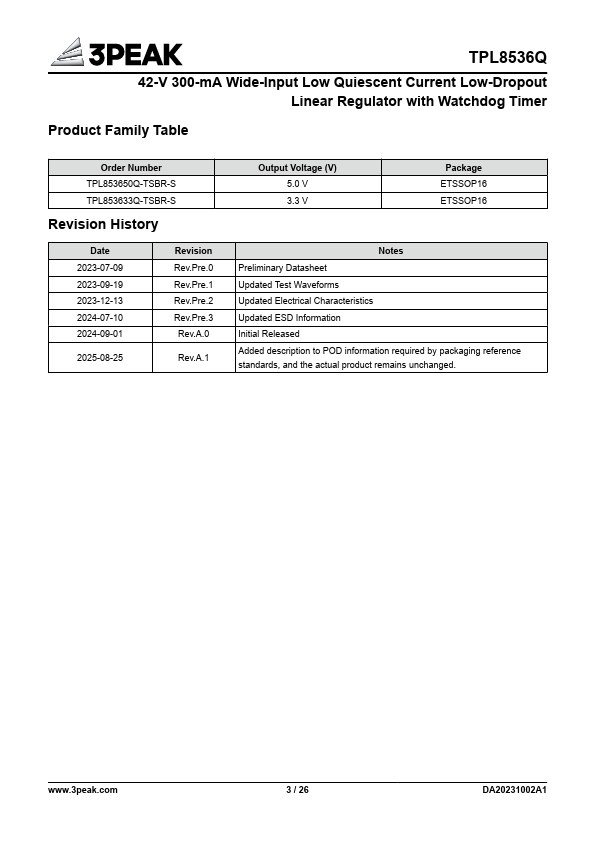

The TPL8536Q series offers 5-V and 3.3-V fixed output voltage options, with a maximum shutdown current of only 2 μA. When the watchdog function is disabled, these devices have a low typical quiescent current of just 6...
