TPR70 Key Features
- Wide Input Voltage Range
- 7.5 V to 15 V
- Fixed Output Voltage
- Low-Temperature Coefficient
- 2.5 ppm/°C Typical from 0°C to 70°C
- 1 ppm/°C Typical from -40°C to 125°C
- High Initial Accuracy
- 0.05% Maximum
- Low Noise
- 1 μVpp/V
- Part: TPR70
- Manufacturer: 3PEAK (official site)
- Size: 9.09 MB
Other TPR70 Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
Unigroup |
TPR70R260M | 700V Super-junction Power MOSFET |
|
Unigroup |
TPR70R360M | 700V Super-junction Power MOSFET |

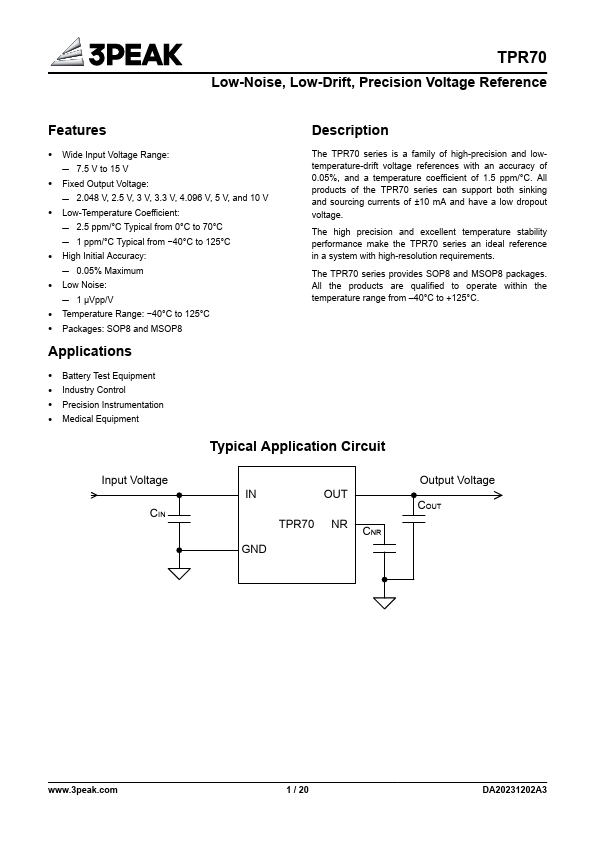

TPR70 Description
Wide Input Voltage Range: 7.5 V to 15 V Fixed Output Voltage: 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 5 V, and 10 V Low-Temperature Coefficient:.
