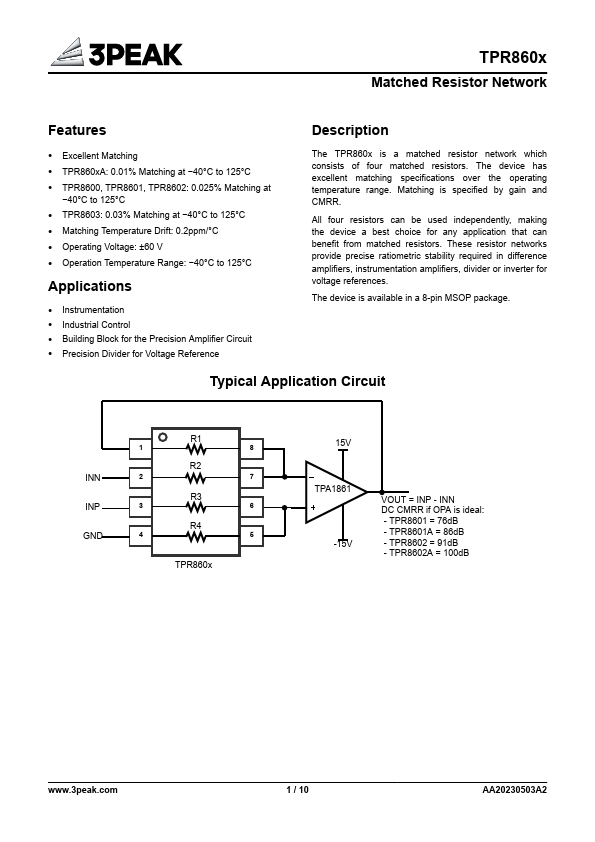

TPR8601
TPR8601 is Matched Resistor Network manufactured by 3PEAK.
- Part of the TPR8600 comparator family.
- Part of the TPR8600 comparator family.
Features
Description
- Excellent Matching
- TPR860x A: 0.01% Matching at
- 40°C to 125°C
- TPR8600, TPR8601, TPR8602: 0.025% Matching at
- 40°C to 125°C
- TPR8603: 0.03% Matching at
- 40°C to 125°C
- Matching Temperature Drift: 0.2ppm/°C
- Operating Voltage: ±60 V
- Operation Temperature Range:
- 40°C to 125°C
Applications
- Instrumentation
- Industrial Control
- Building Block for the Precision Amplifier Circuit
- Precision Divider for Voltage Reference
The TPR860x is a matched resistor network which consists of four matched resistors. The device has excellent matching specifications over the operating temperature range. Matching is specified by gain and CMRR.
All four resistors can be used independently, making the device a best choice for any application that can benefit from matched resistors. These resistor networks provide precise ratiometric stability required in difference amplifiers, instrumentation amplifiers, divider or inverter for voltage references.
The device is available in a 8-pin MSOP package.
Typical Application Circuit
R1
R2
R3
R4
TPR860x
15V
TPA1861 -15V
VOUT = INP
- INN DC CMRR if OPA is ideal:
- TPR8601 = 76d B
- TPR8601A = 86d B
- TPR8602 = 91d B
- TPR8602A = 100d...
