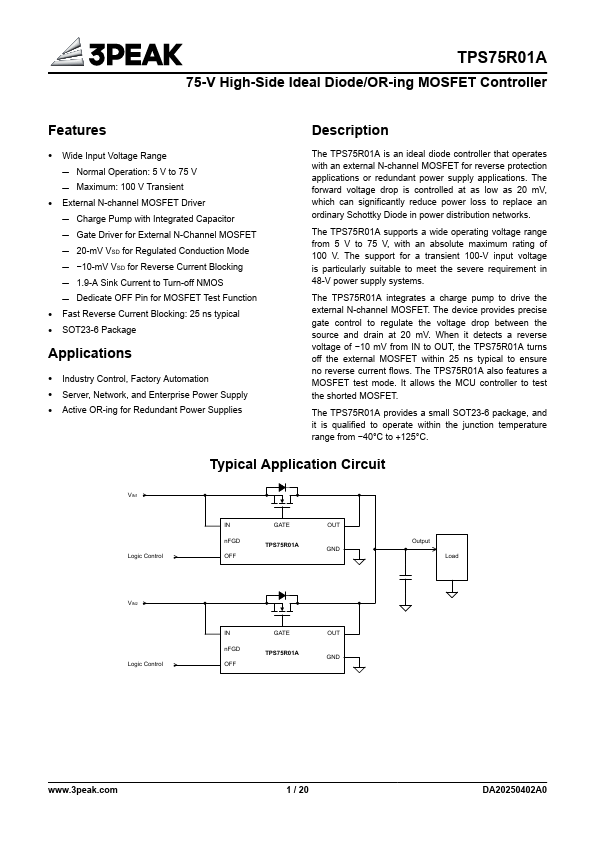

TPS75R01A Datasheet (75-V High-Side Ideal Diode/OR-ing MOSFET Controller)

Part: TPS75R01A
Manufacturer: 3PEAK (official site)
Size: 2.13 MB

TPS75R01A Key Features

Wide Input Voltage Range
Normal Operation: 5 V to 75 V
Maximum: 100 V Transient
External N-channel MOSFET Driver
Charge Pump with Integrated Capacitor
Gate Driver for External N-Channel MOSFET
20-mV VSD for Regulated Conduction Mode
10-mV VSD for Reverse Current Blocking
1.9-A Sink Current to Turn-off NMOS
Dedicate OFF Pin for MOSFET Test Function

TPS75R01A Description

Wide Input Voltage Range Normal Operation: 100 V Transient External N-channel MOSFET Driver Charge Pump with Integrated Capacitor Gate Driver for External N-Channel MOSFET 20-mV VSD for Regulated Conduction Mode −10-mV VSD for Reverse Current Blocking 1.9-A Sink Current to Turn-off NMOS Dedicate OFF Pin for MOSFET Test Function Fast Reverse Current Blocking: 25 ns typical SOT23-6 Package Applications Industry...
