TPT1029Q Key Features
- pliant to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A
- pliant to SAE J2602 LIN Network for Vehicle
- Part: TPT1029Q
- Manufacturer: 3PEAK (official site)
- Size: 1.07 MB
Related 3PEAK Datasheets
| Part Number | Description |
|---|---|
| TPT1042 | Fault Protected High-Speed CAN FD Transceiver |
| TPT1042Q | Automotive Fault Protected High-Speed CAN FD Transceiver |
| TPT1042V | Fault Protected High-Speed CAN FD Transceiver |
| TPT1042VQ | Automotive Fault Protected High-Speed CAN FD Transceiver |
| TPT1043 | Low-Power Fault Protected High-Speed CAN FD Transceiver |

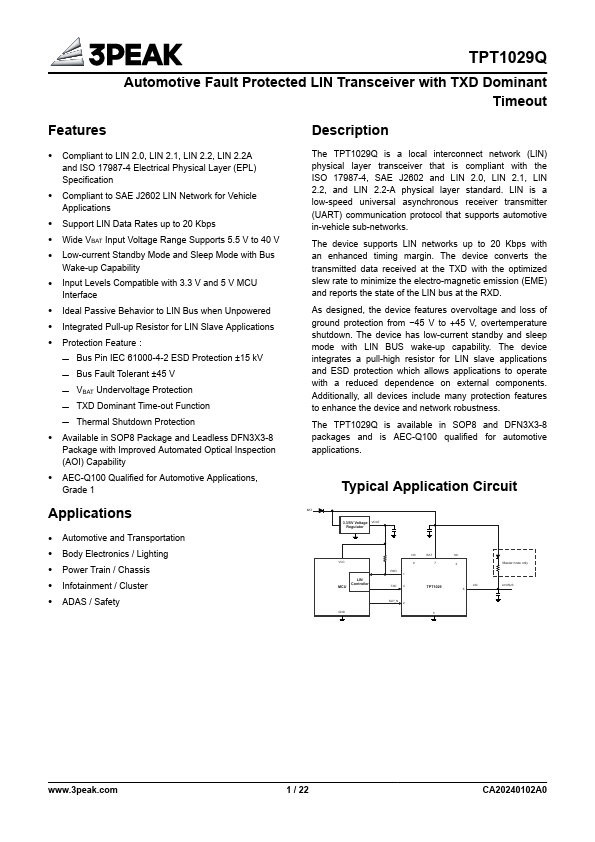

TPT1029Q Description
The TPT1029Q is a local interconnect network (LIN) physical layer transceiver that is pliant with the ISO 17987-4, SAE J2602 and LIN 2.0, LIN 2.1, LIN 2.2, and LIN 2.2-A physical layer standard. LIN is a low-speed universal asynchronous receiver transmitter (UART) munication protocol that supports automotive in-vehicle sub-networks. The device supports LIN networks up to 20 Kbps with an enhanced timing margin.
TPT1029Q Applications
- Support LIN Data Rates up to 20 Kbps
- Wide VBAT Input Voltage Range Supports 5.5 V to 40 V
- Low-current Standby Mode and Sleep Mode with Bus
- Input Levels patible with 3.3 V and 5 V MCU
- Ideal Passive Behavior to LIN Bus when Unpowered
- Integrated Pull-up Resistor for LIN Slave Applications
- Protection Feature：
- Bus Pin IEC 61000-4-2 ESD Protection ±15 kV
