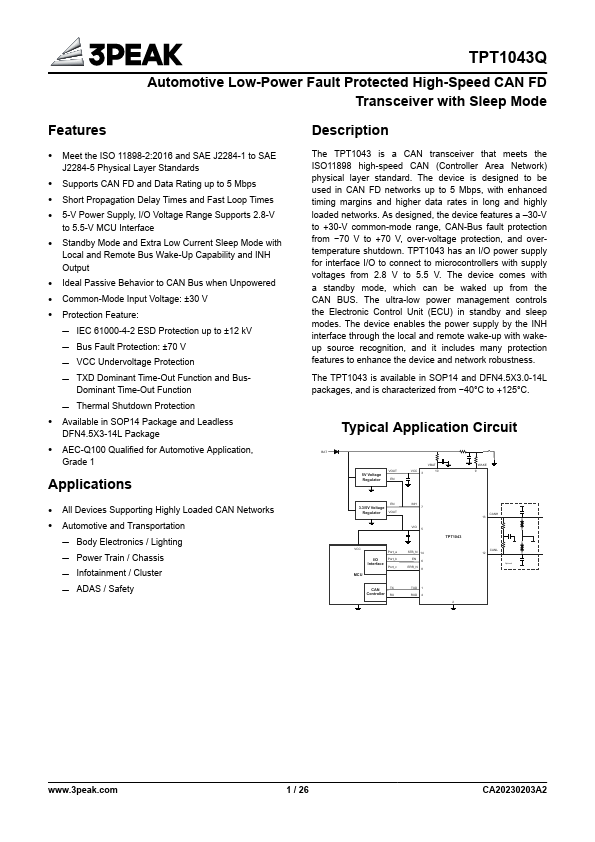

TPT1043Q
Description
The TPT1043 is a CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard. The device is designed to be used in CAN FD networks up to 5 Mbps, with enhanced timing margins and higher data rates in long and highly loaded networks.
Key Features
- Meet the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards
- Supports CAN FD and Data Rating up to 5 Mbps
- Short Propagation Delay Times and Fast Loop Times
- 5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface
- Standby Mode and Extra Low Current Sleep Mode with Local and Remote Bus Wake-Up Capability and INH Output
- Ideal Passive Behavior to CAN Bus when Unpowered
- Common-Mode Input Voltage: ±30 V
- Protection Feature: - IEC 61000-4-2 ESD Protection up to ±12 kV - Bus Fault Protection: ±70 V - VCC Undervoltage Protection - TXD Dominant Time-Out Function and Bus- Dominant Time-Out Function - Thermal Shutdown Protection
- Available in SOP14 Package and Leadless DFN4.5X3-14L Package
- AEC-Q100 Qualified for Automotive Application, Grade 1
