TPW3157A - Low-Voltage SPDT Analog Switch

General Description

TPW3157A is high performance Single Pole/Double Throw (SPDT) analog switches.

The devices feature ultra low RON of 3Ω maximum at 4.5V VCC and will operate over the wide VCC range of 1.65V to 5.5V.

Key Features

  • Latch-Up Performance Exceeds 800 mA.
  • Supply Voltage: 1.65V to 5.5V.
  • Low ON-State Resistance: maximum 3Ω at Vs = 4.5V.
  • Bandwidth: 100 MHz.
  • Fast switching times: tON =40 ns, tOFF =15 ns.
  • Break-Before-Make Switching.
  • Operation Temperature Range:.
  • 40°C to 125°C.

📥 Download Datasheet

Datasheet Details

Part number TPW3157A
Manufacturer 3PEAK
File Size 543.60 KB
Description Low-Voltage SPDT Analog Switch
Datasheet download datasheet TPW3157A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPW37.5A Current Transducers Topstek
TPW37.5A-LTC Current Transducers Topstek
TPW3852 ISDN S-Bus Input/Output Transformer Filtran
TPW3R70APL Silicon N-Channel MOSFET Toshiba
TPW100A Current Transducers Topstek

Other Datasheets by 3PEAK

Part Number Description
TPW3111 Low Voltage SPST Analog Switch
TPW3115 Low Voltage SPST Analog Switch
TPW3125-S Low-Voltage SPDT Analog Switch
TPW3188Q Automotive Grade 5-V General Purpose Analog Switch
TPW3221 SPDT Analog Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

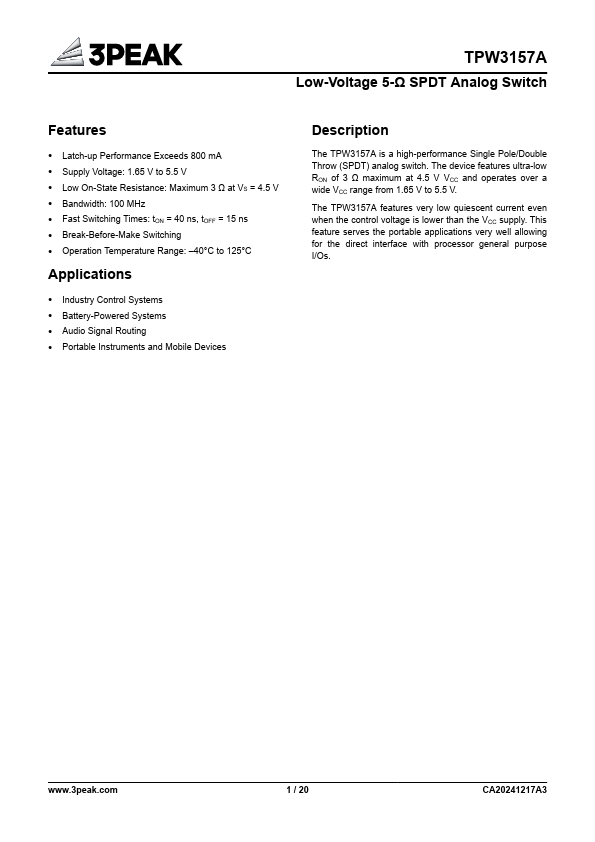

Features ⚫ Latch-Up Performance Exceeds 800 mA ⚫ Supply Voltage: 1.65V to 5.5V ⚫ Low ON-State Resistance: maximum 3Ω at Vs = 4.5V ⚫ Bandwidth: 100 MHz ⚫ Fast switching times: tON =40 ns, tOFF =15 ns ⚫ Break-Before-Make Switching ⚫ Operation Temperature Range: –40°C to 125°C Applications ⚫ Industry control systems ⚫ Battery-powered systems ⚫ Audio Signal Routing ⚫ Portable Instruments and Mobile Device TPW3157A Low Voltage 5Ω SPDT Analog Switch Description TPW3157A is high performance Single Pole/Double Throw (SPDT) analog switches. The devices feature ultra low RON of 3Ω maximum at 4.5V VCC and will operate over the wide VCC range of 1.65V to 5.5V. The TPW3157A features very low quiescent current even when the control voltage is lower than the VCC supply.
