TP1561AL1 - Op Amps

Description

The TP156XAL1 series are CMOS dual, and quad RRIO opamps with low offset, low power and stable high frequency response.

Features

  • Supply Voltage: 2.5V to 6.0V.
  • Low Supply Current: typical 600μA per channel.
  • Rail to Rail Input and Output.
  • Bandwidth: typical 6 MHz.
  • Slew Rate: typical 4.5V/μs.
  • Excellent EMI Suppress Performance.
  • Offset Voltage: maximum ±3mV.
  • Offset Voltage Temperature Drift: typical 1 μV/°C.
  • Low Noise: typical 19 nV/√Hz at 1kHz.
  • High Output Capability: typical 100mA.
  • 40°C to 125°C Operation Temperature Range.
  • Green, Popular Type Package App.

📥 Download Datasheet

Datasheet preview – TP1561AL1

Datasheet Details

Part number TP1561AL1
Manufacturer 3Peak
File Size 1.24 MB
Description Op Amps
Datasheet download datasheet TP1561AL1 Datasheet

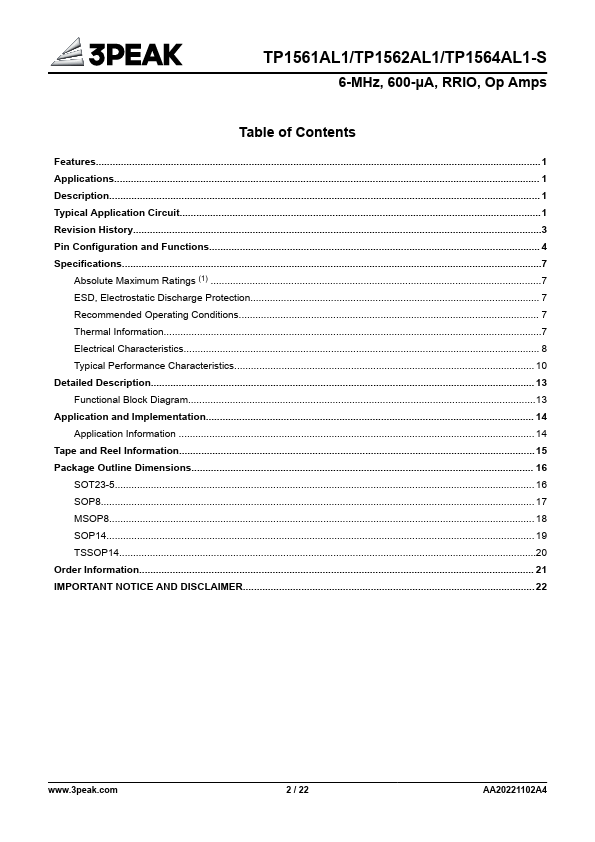

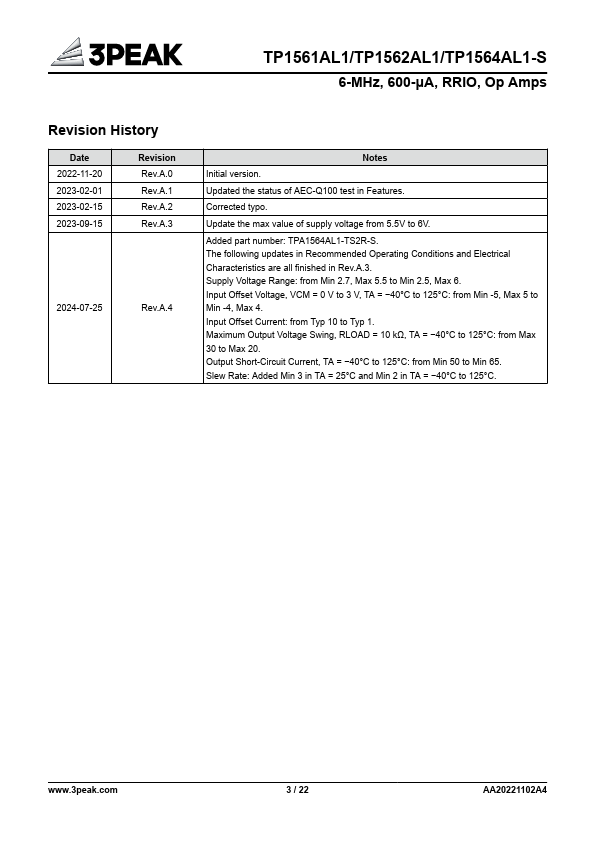

Additional preview pages of the TP1561AL1 datasheet.

📁 Similar Datasheet

  • TP150A - Current Transducers (Topstek)
  • TP150S - LCD (Han Touch)
  • TP152C12D4 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C12D6 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C12S3L - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C12S5 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C15D4 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C15D6 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C15S3L - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
  • TP152C15S5 - 450mA High PSRR Voltage Regulator (TECH PUBLIC)
Other Datasheets by 3Peak

Full PDF Text Transcription

Click to expand full text

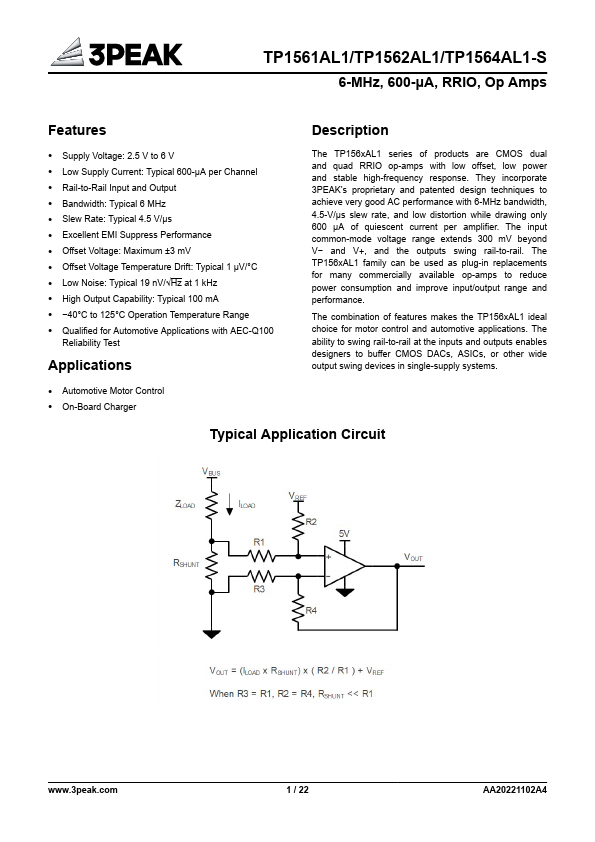

Features ⚫ Supply Voltage: 2.5V to 6.0V ⚫ Low Supply Current: typical 600μA per channel ⚫ Rail to Rail Input and Output ⚫ Bandwidth: typical 6 MHz ⚫ Slew Rate: typical 4.5V/μs ⚫ Excellent EMI Suppress Performance ⚫ Offset Voltage: maximum ±3mV ⚫ Offset Voltage Temperature Drift: typical 1 μV/°C ⚫ Low Noise: typical 19 nV/√Hz at 1kHz ⚫ High Output Capability: typical 100mA ⚫ –40°C to 125°C Operation Temperature Range ⚫ Green, Popular Type Package Applications ⚫ White Goods ⚫ Motor Control TP1561AL1/TP1562AL1/TP1564AL1 6MHz, 600μA, RRIO, Op Amps Description The TP156XAL1 series are CMOS dual, and quad RRIO opamps with low offset, low power and stable high frequency response.
