TP1562AL1 - Op Amps

Product Overview

3Peak

Datasheet Details

Part number	TP1562AL1
Manufacturer	3Peak
File Size	1.24 MB
Description	Op Amps
Datasheet	TP1562AL1 Datasheet
Note	This datasheet PDF includes multiple part numbers: TP1562AL1, TP1561AL1. Please refer to the document for exact specifications by model.

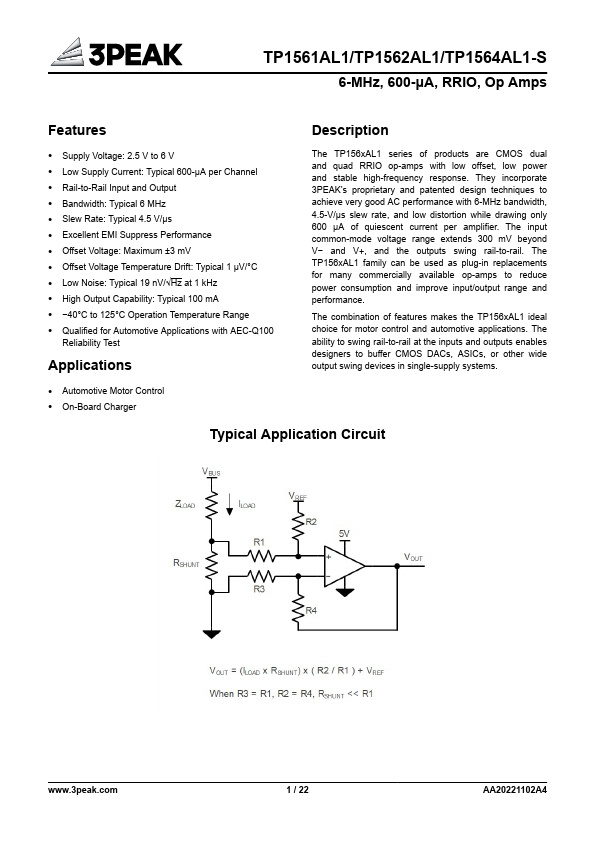

Additional preview pages of the TP1562AL1 datasheet.

Product details

Description

The TP156XAL1 series are CMOS dual, and quad RRIO opamps with low offset, low power and stable high frequency response. and V+, and the outputs swing rail-to-rail.

Features

Supply Voltage: 2.5V to 6.0V.
Low Supply Current: typical 600μA per channel.
Rail to Rail Input and Output.
Bandwidth: typical 6 MHz.
Slew Rate: typical 4.5V/μs.
Excellent EMI Suppress Performance.
Offset Voltage: maximum ±3mV.
Offset Voltage Temperature Drift: typical 1 μV/°C.
Low Noise: typical 19 nV/√Hz at 1kHz.
High Output Capability: typical 100mA.
40°C to 125°C Operation Temperature Range.
Green, Popular Type Package App.
