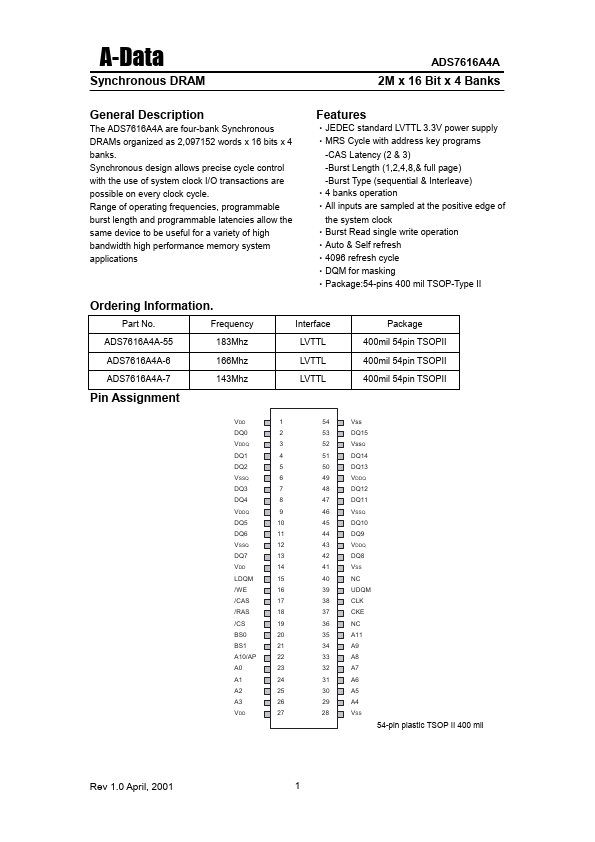

ADS7616A4A Datasheet Synchronous Dram

Manufacturer: A-Data Technology

Overview: A-Data Synchronous DRAM ADS7616A4A 2M x 16 Bit x 4 Banks General.

General Description

The ADS7616A4A are four-bank Synchronous DRAMs organized as 2,097152 words x 16 bits x 4 banks.

Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.

Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth high performance memory system applications

Key Features

  • JEDEC standard LVTTL 3.3V power supply.
  • MRS Cycle with address key programs -CAS Latency (2 & 3) -Burst Length (1,2,4,8,& full page) -Burst Type (sequential & Interleave).
  • 4 banks operation.
  • All inputs are sampled at the positive edge of the system clock.
  • Burst Read single write operation.
  • Auto & Self refresh.
  • 4096 refresh cycle.
  • DQM for masking.
  • Package:54-pins 400 mil TSOP-Type II Ordering Information. Part No. Frequen.
